FPF2001 - Advanced Load Management

Product Overview

ON Semiconductor

Datasheet Details

Part number	FPF2001
Manufacturer	ON Semiconductor
File Size	229.67 KB
Description	Advanced Load Management
Datasheet	FPF2001 Datasheet
Note	This datasheet PDF includes multiple part numbers: FPF2001, FPF2000. Please refer to the document for exact specifications by model.

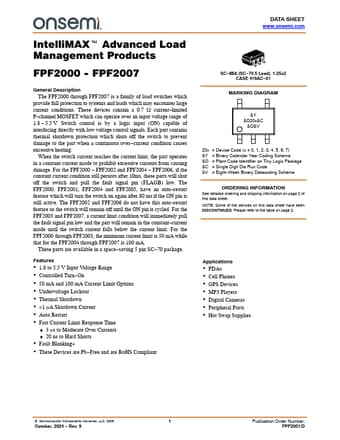

Additional preview pages of the FPF2001 datasheet.

Product details

Description

The FPF2000 through FPF2007 is a family of load switches which provide full protection to systems and loads which may encounter large current conditions.These devices contain a 0.7 W current limited P channel MOSFET which can operate over an input voltage range of 1.8 5.5 V.

Features

1.8 to 5.5 V Input Voltage Range.
Controlled Turn.
On.
50 mA and 100 mA Current Limit Options.
Undervoltage Lockout.
Thermal Shutdown.
