FUSB15200

Dual Port USB Type-C & PD Controller

FUSB15200 Features

* Small Footprint Dual

* port USB PD Controller Supporting the Most Popular Peripherals

* USB PD 3.1 & USB Type

* C 2.1

* 4x I2C Host/Device

* Dual USB BC1.2 Consumer/Provider

* USB2.0 Isolation Switches

* Fully Programmable and Upgradable

FUSB15200 Datasheet (262.34 KB)

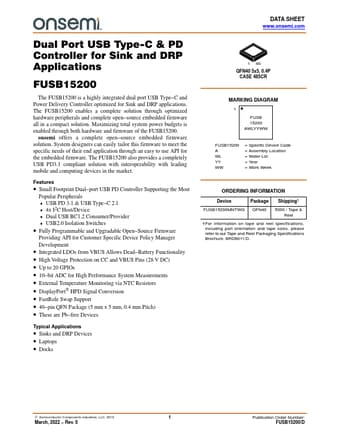

Preview of FUSB15200 PDF

Datasheet Details

Part number:

FUSB15200

Manufacturer:

ON Semiconductor ↗

File Size:

262.34 KB

Description:

Dual port usb type-c & pd controller.
DATA SHEET www.onsemi.com Dual Port USB Type-C & PD Controller for Sink and DRP Applications FUSB15200 The FUSB15200 is a highly integrated dual port.
