GBPC1510, GBPC12005 Datasheet - ON Semiconductor

GBPC1510, GBPC12005, Bridge Rectifiers

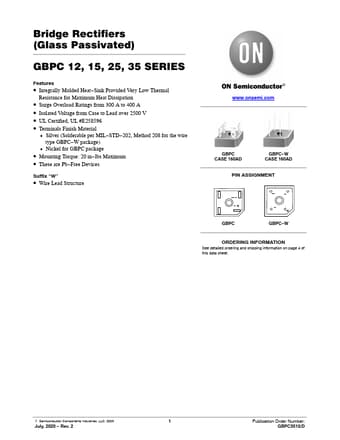

Bridge Rectifiers (Glass Passivated) GBPC 12, 15, 25, 35 SERIES .

GBPC12005-ONSemiconductor.pdf

GBPC1510 Datasheet Preview — This datasheet PDF includes multiple part numbers: GBPC1510, GBPC12005. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

GBPC1510, GBPC12005

Manufacturer:

ON Semiconductor ↗

File Size:

322.21 KB

Description:

Bridge Rectifiers

Note:

This datasheet PDF includes multiple part numbers: GBPC1510, GBPC12005.
Please refer to the document for exact specifications by model.

Features

* Integrally Molded Heat
* Sink Provided Very Low Thermal Resistance for Maximum Heat Dissipation
* Surge Overload Ratings from 300 A to 400 A
* Isolated Voltage from Case to Lead over 2500 V
* UL Certified, UL #E258596
* Terminals Finish Material
