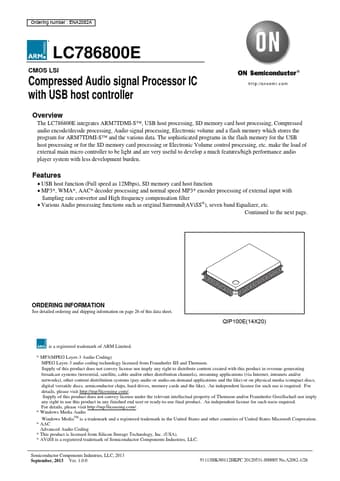

LC786800E
LC786800E is Compressed Audio signal Processor manufactured by onsemi.
Overview
The LC786800E integrates ARM7TDMI-S™, USB host processing, SD memory card host processing, pressed audio encode/decode processing, Audio signal processing, Electronic volume and a flash memory which stores the program for ARM7TDMI-S™ and the various data. The sophisticated programs in the flash memory for the USB host processing or for the SD memory card processing or Electronic Volume control processing, etc. make the load of external main micro controller to be light and are very useful to develop a much features
/high performance audio player system with less development burden.
Features
- USB host function (Full speed as 12Mbps), SD memory card host function
- MP3- , WMA- , AAC- decoder processing and normal speed MP3- encoder processing of external input with
Sampling rate convertor and High frequency pensation filter
- Various Audio processing functions such as original Surround(AVi SS®), seven band Equalizer, etc.
Continued to the next page.
ORDERING INFORMATION
See detailed ordering and shipping information on page 26 of this data sheet.
QIP100E(14X20) is a registered trademark of ARM Limited.
- MP3(MPEG Layer-3 Audio Coding) MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson. Supply of this product does not convey license nor imply any right to distribute content created with this product in revenue-generating broadcast systems (terrestrial, satellite, cable and/or other distribution channels), streaming applications (via Internet, intranets and/or networks), other content distribution systems (pay-audio or audio-on-demand applications and the like) or on physical media (pact discs, digital versatile discs, semiconductor chips, hard drives, memory cards and the like). An independent license for such use is required. For details, please visit http://mp3licensing./. Supply of this product does not convey license under the relevant intellectual property of Thomson and/or Fraunhofer Gesellschaft nor imply any right to use...
