LE2416RLBXA - Two Wire Serial Interface EEPROM

Datasheet Summary

Description

PIN.A1 PIN.A2 PIN.B1 PIN.B2 PIN.C1 PIN.C2 VDD VDD2 WP VSS SCL SDA Block Diagram C CBA 0.80mm × 1.20mm × 0.33mm Power supply Power supply for WP pin Write protect pin Ground Serial clock input Serial data input/output VDD2 WP Write controller High voltage generator Input Buffer EEPROM Array

Features

  • en input, the lower 4 bits (A0-A3) of the word addresses are a.

📥 Download Datasheet

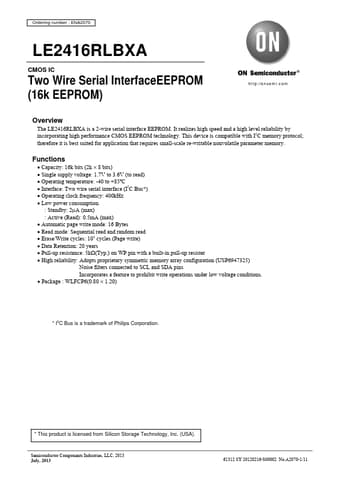

Datasheet preview – LE2416RLBXA

Datasheet Details

Part number LE2416RLBXA
Manufacturer ON Semiconductor
File Size 277.84 KB
Description Two Wire Serial Interface EEPROM
Datasheet download datasheet LE2416RLBXA Datasheet
Additional preview pages of the LE2416RLBXA datasheet.

📁 Similar Datasheet

  • LE2416RLBXA - Two Wire Serial Interface EEPROM (Sanyo)
  • LE24162LBXA - Two Wire Serial Interface EEPROM (Sanyo)
  • LE24C0221M - Two Wire Serial Interface EEPROM (Sanyo Semicon Device)
  • LE24C023M - Two Wire Serial Interface EEPROM (Sanyo Semicon Device)
  • LE24C042M - Two Wire Serial Interface EEPROM (Sanyo Semicon Device)
  • LE24C043 - Two Wire Serial Interface EEPROM (Sanyo Semicon Device)
  • LE24C082M - Two Wire Serial Interface EEPROM (Sanyo Semicon Device)
  • LE24C162M - Two Wire Serial Interface EEPROM (Sanyo Semicon Device)
  • LE24C322M - Two Wire Serial Interface EEPROM (Sanyo Semicon Device)
  • LE24CB1283 - Two Wire Serial Interface EEPROM (Sanyo Semicon Device)
Other Datasheets by ON Semiconductor

Full PDF Text Transcription

Click to expand full text
Ordering number : ENA2070 LE2416RLBXA CMOS IC Two Wire Serial InterfaceEEPROM (16k EEPROM) http://onsemi.com Overview The LE2416RLBXA is a 2-wire serial interface EEPROM. It realizes high speed and a high level reliability by incorporating high performance CMOS EEPROM technology. This device is compatible with I2C memory protocol; therefore it is best suited for application that requires small-scale re-writable nonvolatile parameter memory. Functions • Capacity: 16k bits (2k × 8 bits) • Single supply voltage: 1.7V to 3.6V (to read) • Operating temperature: -40 to +85ºC • Interface: Two wire serial interface (I2C Bus*) • Operating clock frequency: 400kHz • Low power consumption : Standby: 2μA (max) : Active (Read): 0.
