LM2902V
LM2902V is Single Supply Quad Operational Amplifiers manufactured by onsemi.
Features
- Short Circuited Protected Outputs
- True Differential Input Stage
- Single Supply Operation: 3.0 V to 32 V
- Low Input Bias Currents: 100 n A Maximum (LM324A)
- Four Amplifiers Per Package
- Internally pensated
- mon Mode Range Extends to Negative Supply
- Industry Standard Pinouts
- ESD Clamps on the Inputs Increase Ruggedness without Affecting
Device Operation
- NCV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC- Q100 Qualified and PPAP Capable
- These Devices are Pb- Free, Halogen Free/BFR Free and are Ro HS pliant

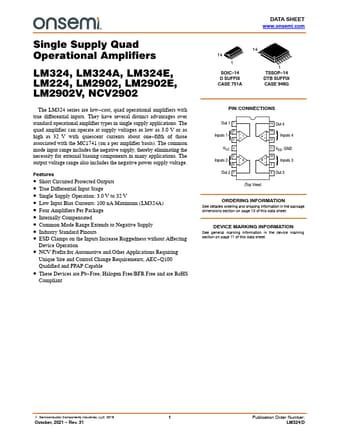

DATA SHEET .onsemi.
SOIC- 14 D SUFFIX CASE 751A
1 TSSOP- 14 DTB SUFFIX CASE 948G
PIN CONNECTIONS
Out 1 1
Inputs 1 3
- )1 VCC 4
Inputs 2 5 )- 2
Out 2 7
14 Out 4
13 4- ) 12
Inputs 4
11 VEE, GND
3)- 10 9
Inputs 3
8 Out 3
(Top View)
ORDERING INFORMATION
See detailed ordering and shipping information in the package dimensions section on page 10 of this data sheet.
DEVICE MARKING INFORMATION
See general marking information in the device marking section on page 11 of this data...
