LM317 Datasheet - ON Semiconductor

LM317 Positive Voltage Regulator

Voltage Regulator Adjustable Output, Positive 1.5 A LM317, NCV317 The LM317 is an adjustable 3 terminal positive voltage regulator capable of supplying in excess of 1.5 A over an output voltage range of 1.2 V to 37 V. This voltage regulator is exceptionally easy to use and requires only two external resistors to set the output voltage. Further, it employs internal current limiting, thermal shutdown and safe area compensation, making it essentially blow out proof. The .

LM317 Features

* Output Current in Excess of 1.5 A

* Output Adjustable between 1.2 V and 37 V

* Internal Thermal Overload Protection

* Internal Short Circuit Current Limiting Constant with Temperature

* Output Transistor Safe

* Area Compensation

* Floating Oper

LM317 Datasheet (278.05 KB)

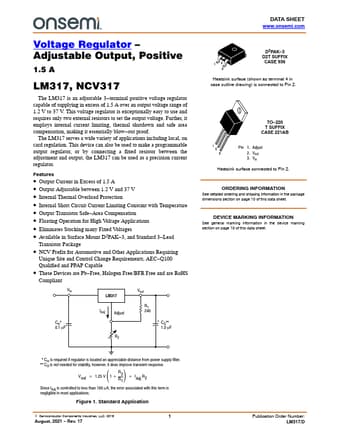

Preview of LM317 PDF
LM317 Datasheet Preview Page 2 LM317 Datasheet Preview Page 3

Datasheet Details

Part number:

LM317

Manufacturer:

ON Semiconductor ↗

File Size:

278.05 KB

Description:

Positive voltage regulator.
