LM431A - Programmable Shunt Regulator

Datasheet Summary

Description

The LM431A/LM431B/LM431C are three

adjustable regulators with thermal stability over the full operating temperature range.

The output voltage can be set to any value between VREF (approximately 2.5 V) and 36 V with two external resistors.

Features

  • Programmable Output Voltage to 36 V.
  • Low Dynamic Output Impedance: 0.2 W (Typical).
  • Sink Current Capability: 1.0 to 100 mA.
  • Equivalent Full.
  • Range Temperature Coefficient of 50 ppm/°C (Typical).
  • Temperature Compensated for Operation Over Full Rated Operating Temperature Range.
  • Low Output Noise Voltage.
  • Fast Turn.
  • on Response DATA SHEET www. onsemi. com 123 TO.
  • 92 CASE 135AN 1 2 3 TO.
  • 92 CASE 135AR MARKI.

📥 Download Datasheet

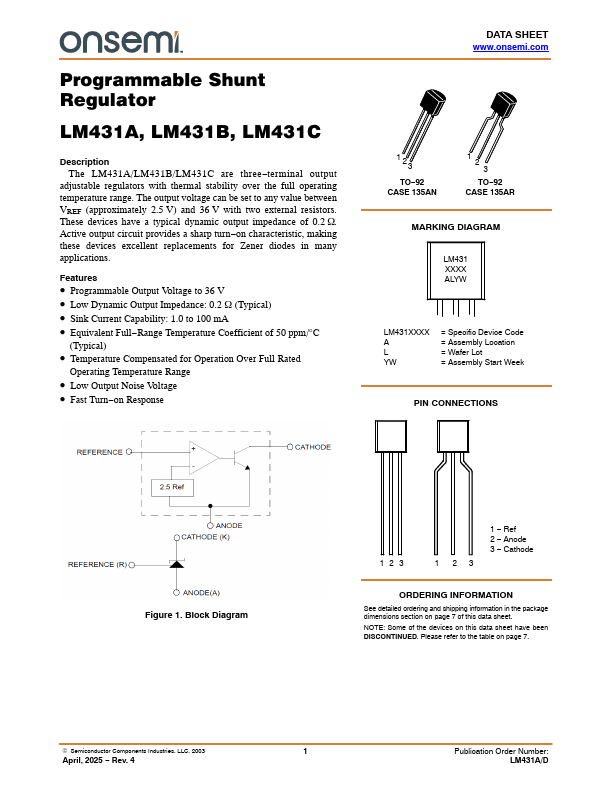

Datasheet preview – LM431A

Datasheet Details

Part number LM431A
Manufacturer ON Semiconductor
File Size 315.01 KB
Description Programmable Shunt Regulator
Datasheet download datasheet LM431A Datasheet

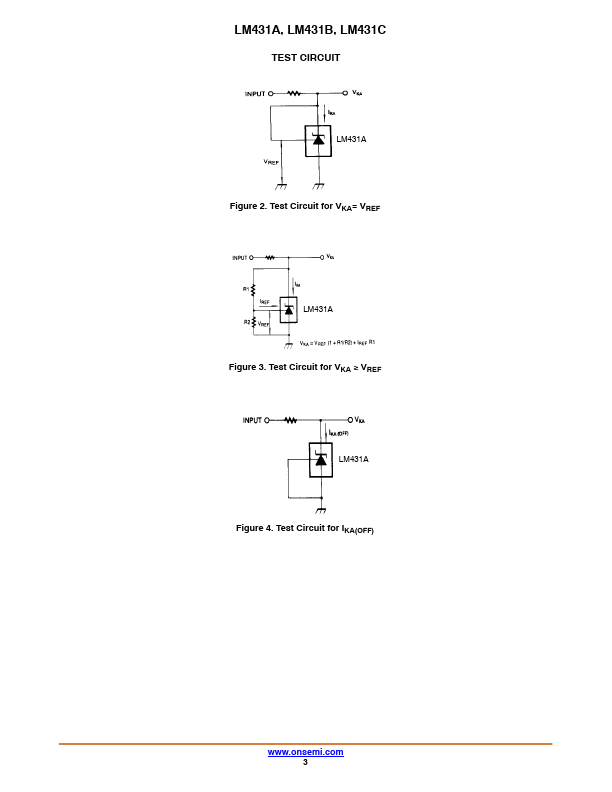

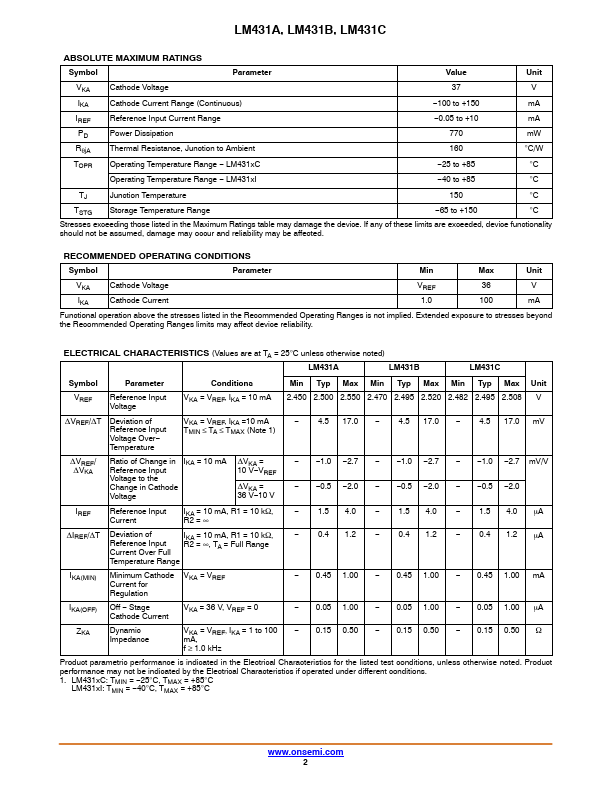

Additional preview pages of the LM431A datasheet.

📁 Similar Datasheet

  • LM431A - Programmable Shunt Regulator (Fairchild Semiconductor)
  • LM431A - Adjustable Precision Shunt Regulator (TAITRON)
  • LM431AC - Adjustable precision shunt regulators (NXP)
  • LM431 - Adjustable Precision Zener Shunt Regulator (National Semiconductor)
  • LM431 - Programmable Shunt Regulator (Fairchild Semiconductor)
  • LM431 - Adjustable precision shunt regulators (NXP)
  • LM431 - Programmable Shunt Regulator (Fairchild Semiconductor)
  • LM431 - Adjustable Precision Zener Shunt Regulator (Texas Instruments)
  • LM4310 - RGB Display Differential Interface Deserializer (National Semiconductor)
  • LM4312 - RGB Display Differential Interface Serializer (National Semiconductor)
Other Datasheets by ON Semiconductor
  • LM431B - Programmable Shunt Regulator
  • LM431C - Programmable Shunt Regulator
  • LM431SA - Programmable Shunt Regulator
  • LM431SB - Programmable Shunt Regulator
  • LM431SC - Programmable Shunt Regulator
  • LM4040 - Precision Micro-Power Shunt Voltage References
  • LM4041 - Precision Micro-Power Shunt Voltage References

Full PDF Text Transcription

Click to expand full text
Programmable Shunt Regulator LM431A, LM431B, LM431C Description The LM431A/LM431B/LM431C are three−terminal output adjustable regulators with thermal stability over the full operating temperature range. The output voltage can be set to any value between VREF (approximately 2.5 V) and 36 V with two external resistors. These devices have a typical dynamic output impedance of 0.2 W. Active output circuit provides a sharp turn−on characteristic, making these devices excellent replacements for Zener diodes in many applications. Features • Programmable Output Voltage to 36 V • Low Dynamic Output Impedance: 0.2 W (Typical) • Sink Current Capability: 1.
