MAC12NG, MAC12D - Triacs

ON Semiconductor

📥 Download Datasheet

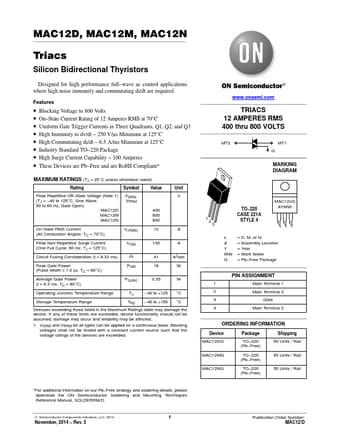

MAC12NG Datasheet Preview — This datasheet PDF includes multiple part numbers: MAC12NG, MAC12D. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MAC12NG, MAC12D
Manufacturer	ON Semiconductor ↗
File Size	102.93 KB
Description	Triacs
Datasheet	MAC12D_ONSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: MAC12NG, MAC12D. Please refer to the document for exact specifications by model.

MAC12NG Product details

Features

Blocking Voltage to 800 Volts.
On.
State Current Rating of 12 Amperes RMS at 70°C.
Uniform Gate Trigger Currents in Three Quadrants, Q1, Q2, and Q3.
High Immunity to dv/dt.
250 V/ms Minimum at 125°C.
High Commutating di/dt.
6.5 A/ms Minimum at 125°C.
Industry Standard TO.
220 Package.
High Surge Current Capability.
100 Amperes.
These Devices are Pb.
Free and are RoHS Compliant.
