MBR0520LT1G Datasheet - ON Semiconductor

MBR0520LT1G-ONSemiconductor.pdf

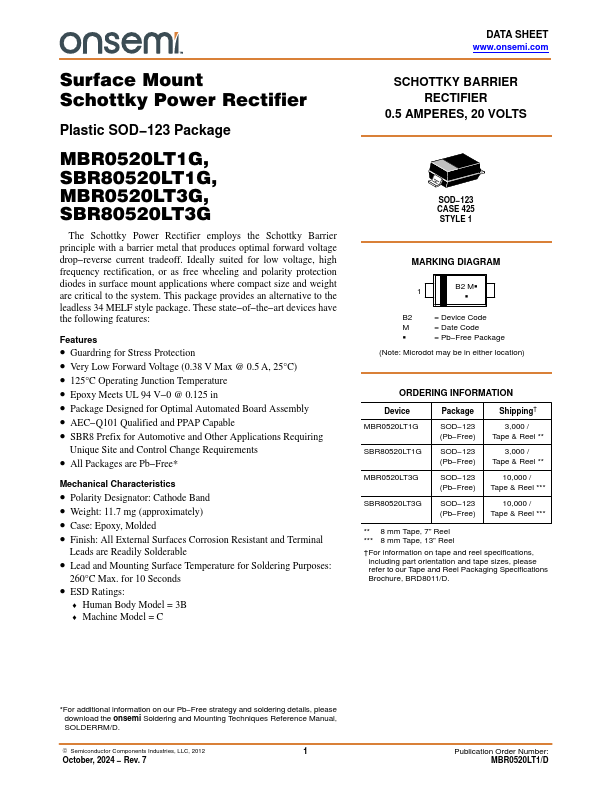

Preview of MBR0520LT1G PDF

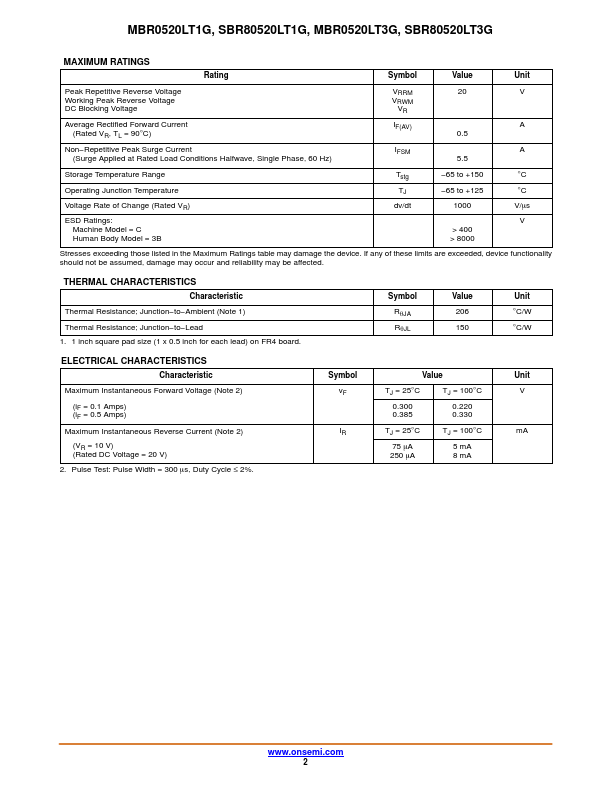

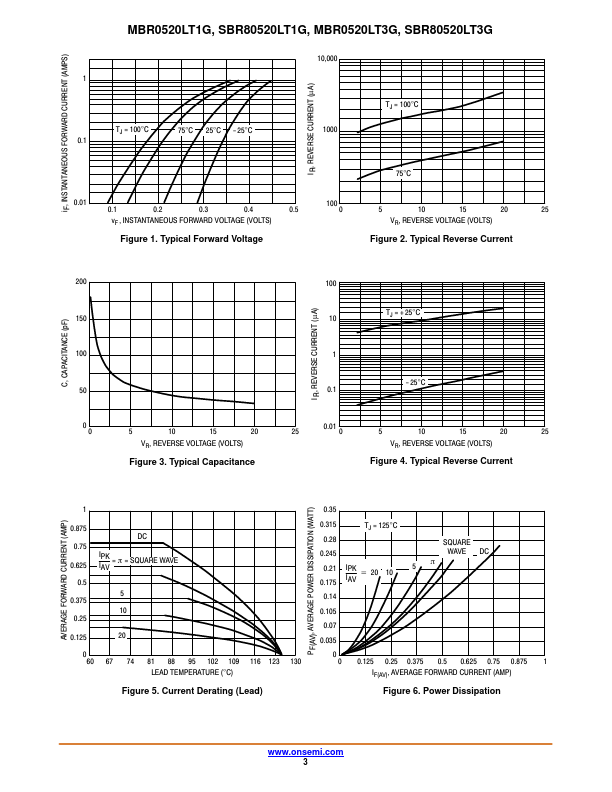

MBR0520LT1G Datasheet Preview Page 2 MBR0520LT1G Datasheet Preview Page 3

Datasheet Details

Part number:

MBR0520LT1G

Manufacturer:

ON Semiconductor ↗

File Size:

150.18 KB

Description:

Surface mount schottky power rectifier.

MBR0520LT1G, Surface Mount Schottky Power Rectifier

Surface Mount Schottky Power Rectifier Plastic SOD 123 Package MBR0520LT1G, SBR80520LT1G, MBR0520LT3G, SBR80520LT3G The Schottky Power Rectifier employs the Schottky Barrier principle with a barrier metal that produces optimal forward voltage drop reverse current tradeoff.

Ideally suited for low voltage, high frequency rectification, or as free wheeling and polarity protection diodes in surface mount applications where compact size and weight are critical to the system.

This pack

MBR0520LT1G Features

* Features

* Guardring for Stress Protection

* Very Low Forward Voltage (0.38 V Max @ 0.5 A, 25°C)

* 125°C Operating Junction Temperature

* Epoxy Meets UL 94 V

* 0 @ 0.125 in

* Package Designed for Optimal Automated Board Assembly

* AEC

* Q1
