MBR5100MFST1G, MBR5100MFS - SWITCHMODE Power Rectifiers

MBR5100MFST1G Description

MBR5100MFS, NRVB5100MFS SWITCHMODE Power Rectifiers .

MBR5100MFST1G Features

* Low Power Loss / High Efficiency
* New Package Provides Capability of Inspection and Probe After Board Mounting
* Guardring for Stress Protection
* Low Forward Voltage Drop
* 175°C Operating Junction Temperature
* NRVB Prefix for Automotive and Other

MBR5100MFST1G Applications

* Requiring Unique Site and Control Change Requirements; AEC
* Q101 Qualified and PPAP Capable
* These are Pb
* Free Devices Mechanical Characteristics:
* Case: Epoxy, Molded
* Epoxy Meets Flammability Rating UL 94
* 0 @ 0.125 in.
* Lead Finish: 100% M

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR5100MFST1G, MBR5100MFS. Please refer to the document for exact specifications by model.

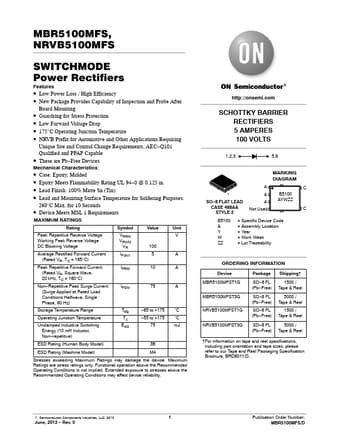

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBR5100MFST1G, MBR5100MFS
Manufacturer
ON Semiconductor ↗
File Size
110.69 KB
Datasheet
MBR5100MFS-ONSemiconductor.pdf
Description
SWITCHMODE Power Rectifiers
Note
This datasheet PDF includes multiple part numbers: MBR5100MFST1G, MBR5100MFS.
Please refer to the document for exact specifications by model.
