MBRD1045G, MBRB1045G - Schottky Power Rectifier

ON Semiconductor

📥 Download Datasheet

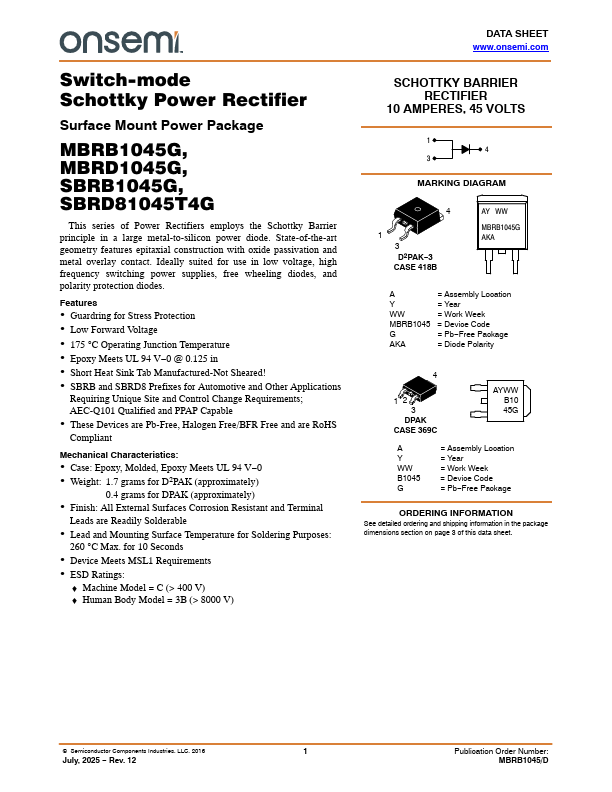

MBRD1045G Datasheet Preview — This datasheet PDF includes multiple part numbers: MBRD1045G, MBRB1045G. Please refer to the document for exact specifications by model.

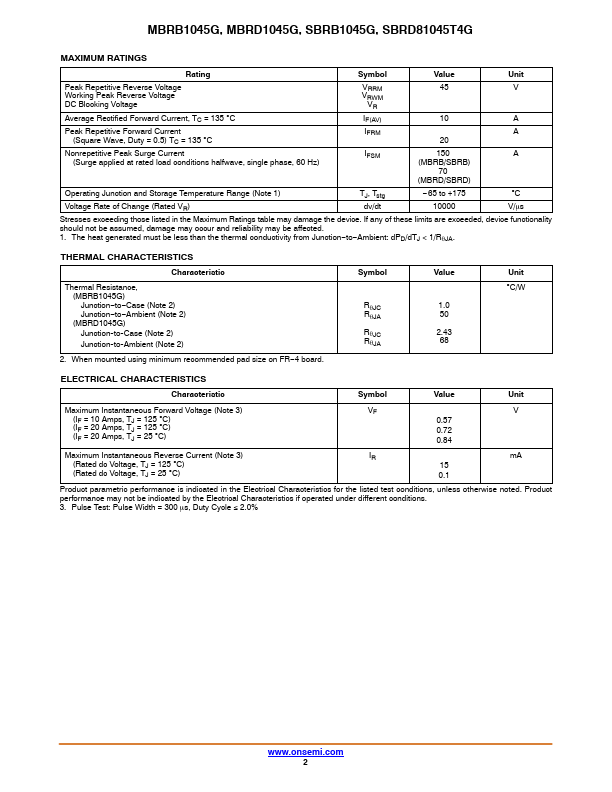

datasheet Preview Page 2

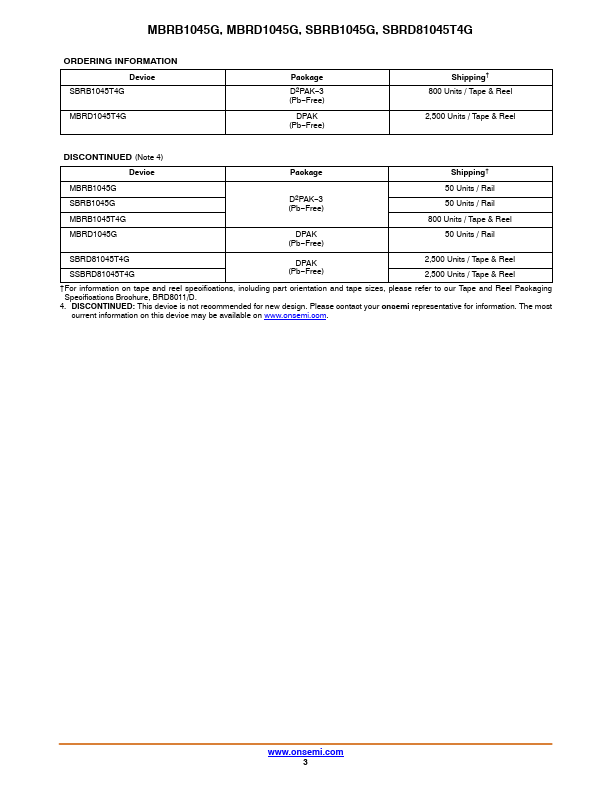

datasheet Preview Page 3

Datasheet Details

Part number	MBRD1045G, MBRB1045G
Manufacturer	ON Semiconductor ↗
File Size	272.64 KB
Description	Schottky Power Rectifier
Datasheet	MBRB1045G-ONSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: MBRD1045G, MBRB1045G. Please refer to the document for exact specifications by model.

MBRD1045G Product details

Features

epitaxial construction with oxide passivation and metal overlay contact. Ideally suited for use in low voltage, high frequency switching power supplies, free wheeling diodes, and polarity protection diodes. Features.
Guardring for Stress Protection.
Low Forward Voltage.
175 C Operating Junction Temperature.
Epoxy Meets UL 94 V.
0 @ 0.125 in.
Short Heat Sink Tab Manufactured-Not Sheared!.
SBRB and SBRD8 Prefixes for Automotive and Other.
