MBRF2045CTG, MBR2045CTG, Power Rectifier

Switch-mode Power Rectifier MBR2045CTG, MBRF2045CTG .

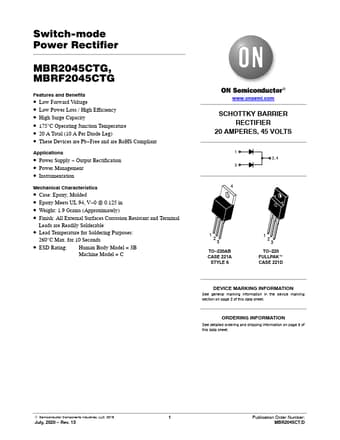

datasheet Preview Page 1 from Datasheet4u.com

MBR2045CTG-ONSemiconductor.pdf

MBRF2045CTG Datasheet Preview — This datasheet PDF includes multiple part numbers: MBRF2045CTG, MBR2045CTG. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MBRF2045CTG, MBR2045CTG

Manufacturer:

ON Semiconductor ↗

File Size:

189.40 KB

Description:

Power Rectifier

Note:

This datasheet PDF includes multiple part numbers: MBRF2045CTG, MBR2045CTG.
Please refer to the document for exact specifications by model.

Features

* Low Forward Voltage
* Low Power Loss / High Efficiency
* High Surge Capacity
* 175°C Operating Junction Temperature
* 20 A Total (10 A Per Diode Leg)
* These Devices are Pb

Applications

* Power Supply
* Output Rectification
* Power Management
* Instrumentation Mechanical Characteristics
* Case: Epoxy, Molded
* Epoxy Meets UL 94, V
* 0 @ 0.125 in
* Weight: 1.9 Grams (Approximately)
* Finish: All External Surfaces
