MBRF40250TG, MBR40250G Switch-mode Schottky Power Rectifier

MBRF40250TG Description

Switch-mode Schottky Power Rectifier 250 V, 40 A MBR40250G, MBR40250TG, MBRF40250TG, MBRB40250TG .

MBRF40250TG Features

* 250 V Blocking Voltage
* Low Forward Voltage Drop, VF = 0.86 V
* Soft Recovery Characteristic, TRR < 35 ns
* Stable Switching Performance Over Temperature
* These Devices are Pb
* Free and are RoHS Compliant Benefits
* Reduces or Eliminates Reverse Recovery Oscillatio

MBRF40250TG Applications

* Power Supply
* Power Management
* Automotive
* Instrumentation Mechanical Characteristics
* Case: Epoxy, Molded
* Weight: 1.9 grams (approximately)
* Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
* Lead Temperature for S

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBRF40250TG, MBR40250G. Please refer to the document for exact specifications by model.

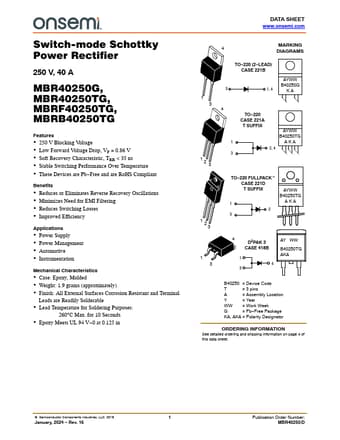

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBRF40250TG, MBR40250G
Manufacturer
ON Semiconductor ↗
File Size
391.68 KB
Datasheet
MBR40250G-ONSemiconductor.pdf
Description
Switch-mode Schottky Power Rectifier
Note
This datasheet PDF includes multiple part numbers: MBRF40250TG, MBR40250G.
Please refer to the document for exact specifications by model.
