MC10H101 Datasheet, Gate, ON Semiconductor

MC10H101 Features

  • Gate
  • Propagation Delay, 1.0 ns Typical
  • Power Dissipation 25 mW/Gate (same as MECL 10K)
  • Improved Noise Margin 150 mV (Over Operating Voltage and Temperature Rang

PDF File Details

Part number:

MC10H101

Manufacturer:

ON Semiconductor ↗

File Size:

121.31kb

Download:

📄 Datasheet

Description:

Quad or/nor gate. The MC10H101 is a quad 2-input OR/NOR gate with one input from each gate common to pin 12. This MECL 10H™ part is a functional/pinout

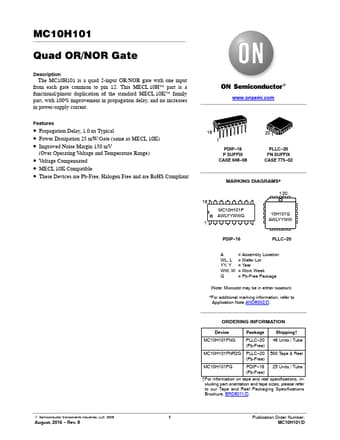

Datasheet Preview: MC10H101 📥 Download PDF (121.31kb)
