MC10H330 Datasheet - ON Semiconductor

Quad Bus Driver/Receiver with 2-to-1 Output Multiplexers

MC10H330 Features

* http://onsemi.com MARKING DIAGRAMS

* 24 MC10H330L AWLYYWW CDIP

* 24 L SUFFIX CASE 758 1

* Propagation Delay, 1.5 ns Typical Data

* to

* Output

* Improved Noise Margin 150 mV (Over Operating Voltage and

* Temperature Range) Voltage Co

MC10H330 General Description

The MC10H330 is a Quad Bus Driver/Receiver with two *to *one output multiplexers. These multiplexers have a common select and output enable. When disabled, (OE = high) the bus outputs go to *2.0 V. Their output can be brought to a low state (VOL) by applying a high level to th.

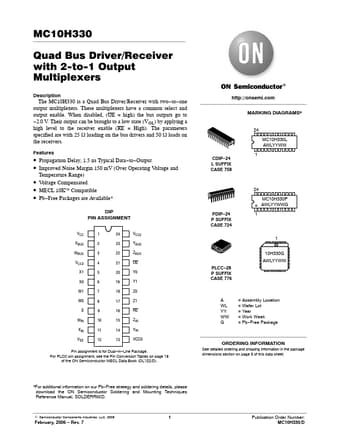

MC10H330 Datasheet (176.28 KB)

Preview of MC10H330 PDF

Datasheet Details

Part number:

MC10H330

Manufacturer:

ON Semiconductor ↗

File Size:

176.28 KB

Description:

Quad bus driver/receiver with 2-to-1 output multiplexers.
