MC33201 Rail-to-Rail Operational Amplifiers

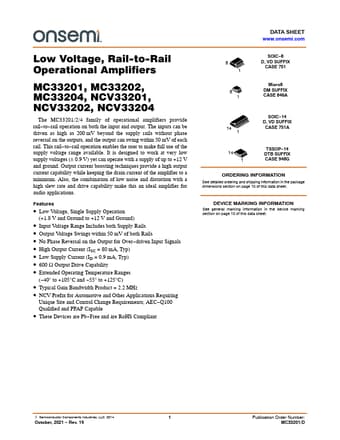

Low Voltage, Rail-to-Rail Operational Amplifiers MC33201, MC33202, MC33204, NCV33201, NCV33202, NCV33204 The MC33201/2/4 family of operational amplifiers provide rail to rail operation on both the input and output. The inputs can be driven as high as 200 mV beyond the supply rails without phase reversal on the outputs, and the output can swing within 50 mV of each rail. This rail to rail operation enables the user to make full use of the supply voltage range avail.

MC33201 Features

* Low Voltage, Single Supply Operation (+1.8 V and Ground to +12 V and Ground)

* Input Voltage Range Includes both Supply Rails

* Output Voltage Swings within 50 mV of both Rails

* No Phase Reversal on the Output for Over

* driven Input Signals

* High Ou
