Voltage Regulator Adjustable Output, Low Dropout 800 mA MC33269, NCV33269 The MC33269/NCV33269 series are low dropout, medium current, fixed and adjustable, positive voltage regulators specifically designed for use in low input voltage applications.

These devices offer the circuit designer an economical solution for precision voltage regulation, while keeping power losses to a minimum.

The regulator consists of a 1.0 V dropout composite PNP NPN pass transistor, current limiting, and ther

MC33269 Features

* 3.3 V, 3.5 V, 5.0 V, 12 V and Adjustable Versions 2.85 V version available as MC34268

* Space Saving DPAK, SO

* 8 and SOT

* 223 Power Packages

* 1.0 V Dropout

* Output Current in Excess of 800 mA

* Thermal Protection

* Short Circuit Prote

MC33269_ONSemiconductor.pdf

Preview of MC33269 PDF

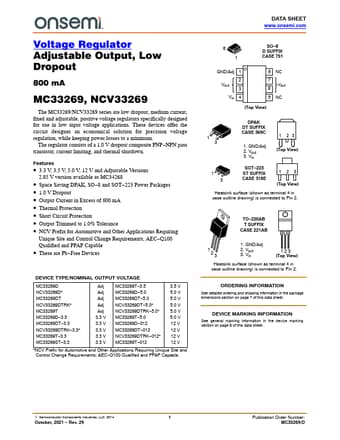

MC33269 Datasheet Preview Page 2 MC33269 Datasheet Preview Page 3
