MC74AC373 Datasheet - ON Semiconductor

MC74AC373 - Octal Transparent Latch

The MC74AC373/74ACT373 contains eight D *type latches with 3 *state standard outputs.

When the Latch Enable (LE) input is HIGH, data on the Dn inputs enters the latches.

In this condition the latches are transparent, i.e., a latch output will change state each time its D input changes.

MC74AC373 Features

* Eight Latches in a Single Package

* 3

* State Outputs for Bus Interfacing

* Outputs Source/Sink 24 mA

* ′ACT373 Has TTL Compatible Inputs

* These are Pb

* Free Devices VCC O7 D7 D6 O6 O5 D5 D4 O4 LE 20 19 18 17 16 15 14 13 12 11 DATA SHEET www.o

MC74AC373_ONSemiconductor.pdf

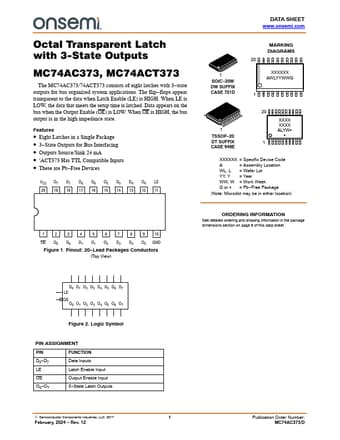

Preview of MC74AC373 PDF
