MC74ACT564

Octal D-Type Flip-Flop

MC74ACT564 Features

* Inputs and Outputs on the Opposite Sides of the Package Allowing Easy Interface with Microprocessors

* Useful as Input or Output Port for Microprocessor

* Functionally Indentical to the MC74ACT574 but with Inverted Outputs

* 3

* State Outputs for Bus

* O

MC74ACT564 General Description

The MC74ACT564 consists of eight edge

*triggered flip

*flops with individual D

*type inputs and 3

*state complementary outputs. The buffered clock and buffered Output Enable are common to all flip

*flops. The eight flip

*flops will store the state of their i.

MC74ACT564 Datasheet (148.18 KB)

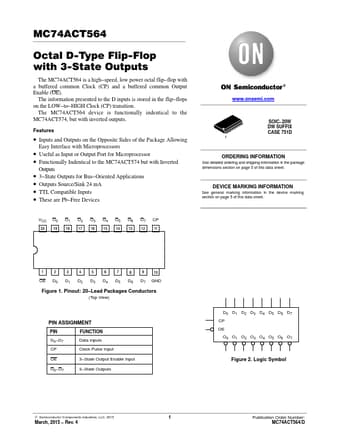

Preview of MC74ACT564 PDF

Datasheet Details

Part number:

MC74ACT564

Manufacturer:

ON Semiconductor ↗

File Size:

148.18 KB

Description:

Octal d-type flip-flop.
MC74ACT564 Octal D-Type Flip-Flop with 3-State Outputs The MC74ACT564 is a high

*speed, low power octal flip

*flop with a buffered comm.
