* High Speed: tPD = 7 ns (Typ) at VCC = 5 V
* Low Power Dissipation: ICC = 1 mA (Max) at TA = 25°C
* High Noise Immunity
* Balanced Propagation Delays (tpLH = tpHL)
* Symmetrical Output Impedance (IOH = IOL = 2 mA)
* Chip Complexity: < 100 FETs
MC74HC1G08 Datasheet (386.68 KB)
MC74HC1G08
386.68 KB
Single 2-input and gate.

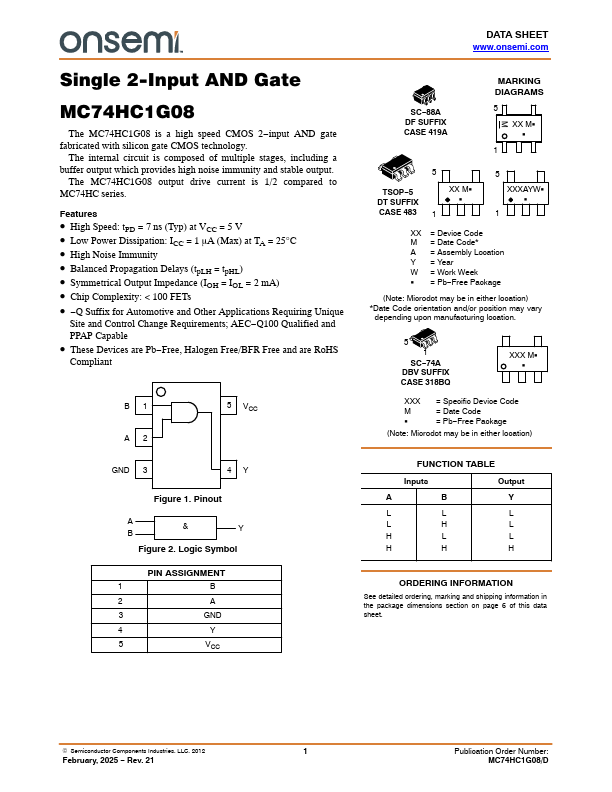

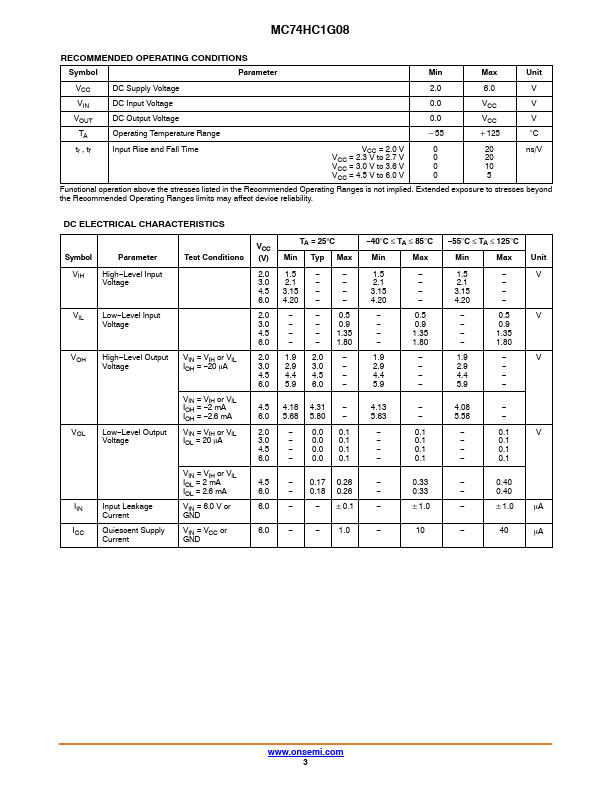

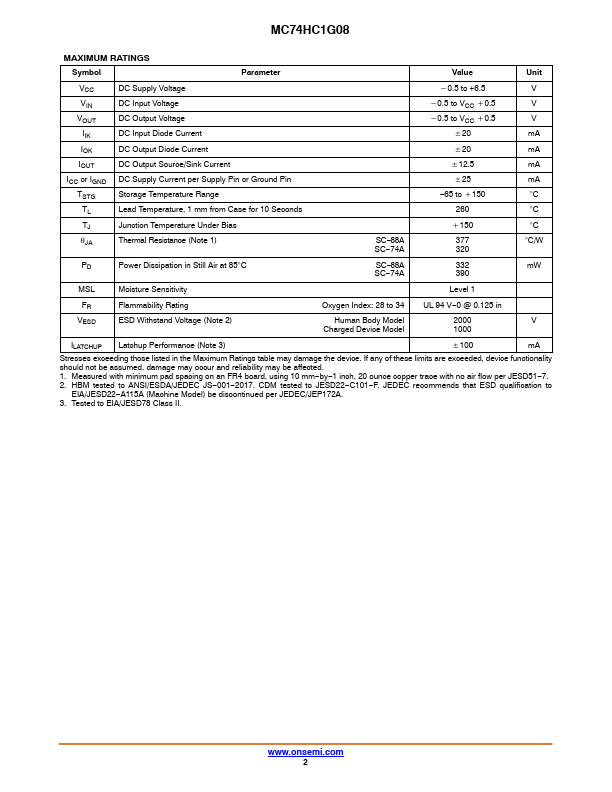

DATA SHEET www.onsemi.com
Single 2-Input AND Gate
MC74HC1G08
The MC74HC1G08 is a high speed CMOS 2
*input AND gate fabricated with silicon gat.
