MC74HCT125A - Quad 3-State Noninverting Buffer

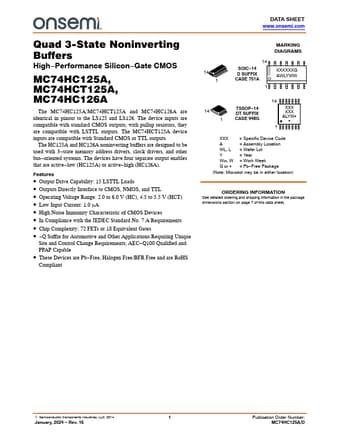

DATA SHEET www.onsemi.com Quad 3-State Noninverting Buffers High Performance Silicon Gate CMOS MC74HC125A, MC74HCT125A, MC74HC126A The MC74HC125A/MC74HCT125A and MC74HC126A are identical in pinout to the LS125 and LS126. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs. The MC74HCT125A device inputs are compatible with Standard CMOS or TTL outputs. The HC125A and HC126A noninverting buffers are designed to.

MC74HCT125A Features

* Output Drive Capability: 15 LSTTL Loads

* Outputs Directly Interface to CMOS, NMOS, and TTL

* Operating Voltage Range: 2.0 to 6.0 V (HC), 4.5 to 5.5 V (HCT)

* Low Input Current: 1.0 mA

* High Noise Immunity Characteristic of CMOS Devices

* In Complia
