MC74VHC1G00

Single 2-Input NAND Gate

MC74VHC1G00 Features

* Designed for 2.0 V to 5.5 V VCC Operation

* 3.5 ns tPD at 5 V (typ)

* Inputs/Outputs Over

* Voltage Tolerant up to 5.5 V

* IOFF Supports Partial Power Down Protection

* Source/Sink 8 mA at 3.0 V

* Available in SC

* 88A, SC

* 74A, TS

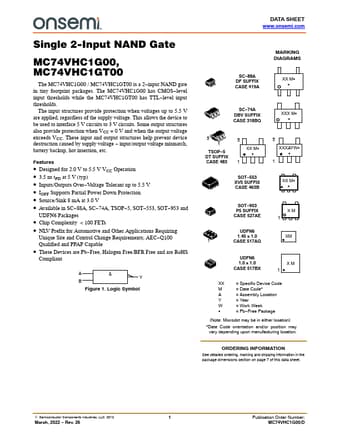

MC74VHC1G00 Datasheet (177.00 KB)

Preview of MC74VHC1G00 PDF

Datasheet Details

Part number:

MC74VHC1G00

Manufacturer:

ON Semiconductor ↗

File Size:

177.00 KB

Description:

Single 2-input nand gate.
Single 2-Input NAND Gate MC74VHC1G00, MC74VHC1GT00 The MC74VHC1G00 / MC74VHC1GT00 is a 2

*input NAND gate in tiny footprint packages. The MC74.
