MC7805B

1.0A Positive Voltage Regulators

MC7805B Features

* Output Current in Excess of 1.0 A

* No External Components Required

* Internal Thermal Overload Protection

* Internal Short Circuit Current Limiting

* Output Transistor Safe

* Area Compensation

* Output Voltage Offered in 1.5%, 2% and 4% Tolera

MC7805B Datasheet (469.82 KB)

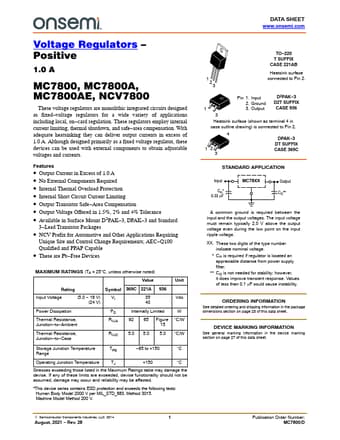

Preview of MC7805B PDF

Datasheet Details

Part number:

MC7805B

Manufacturer:

ON Semiconductor ↗

File Size:

469.82 KB

Description:

1.0a positive voltage regulators.
Voltage Regulators

* Positive 1.0 A MC7800, MC7800A, MC7800AE, NCV7800 These voltage regulators are monolithic integrated circuits designed as.
