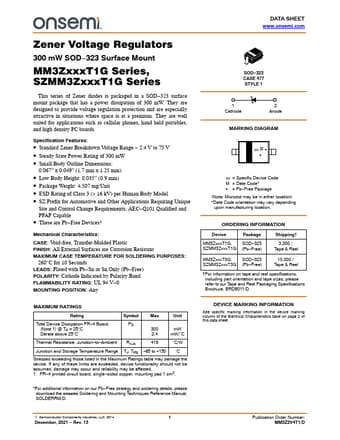

DATA SHEET www.onsemi.com Zener Voltage Regulators 300 mW SOD 323 Surface Mount MM3ZxxxT1G Series, SZMM3ZxxxT1G Series This series of Zener diodes is packaged in a SOD 323 surface mount package that has a power dissipation of 300 mW.
They are designed to provide voltage regulation protection and are especially attractive in situations where space is at a premium.
They are well suited for applications such as cellular phones, hand held portables, and high density PC boards.
Speci
MM3Z13VT1G Features
* Standard Zener Breakdown Voltage Range
* 2.4 V to 75 V
* Steady State Power Rating of 300 mW
* Small Body Outline Dimensions: 0.067” x 0.049” (1.7 mm x 1.25 mm)
* Low Body Height: 0.035” (0.9 mm)
* Package Weight: 4.507 mg/Unit
* ESD Rating
MM3Z10VT1G_ONSemiconductor.pdf
Datasheet Details
MM3Z13VT1G, MM3Z10VT1G
172.88 KB
Zener voltage regulators.
This datasheet PDF includes multiple part numbers: MM3Z13VT1G, MM3Z10VT1G.
Please refer to the document for exact specifications by model.
