MM3Z20VT1G - Zener Voltage Regulators

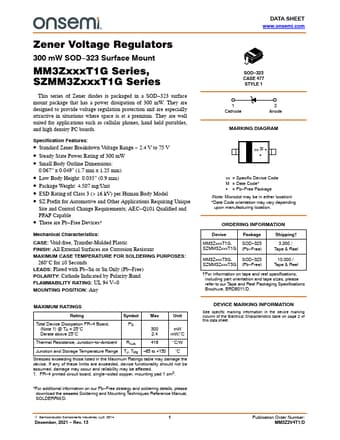

DATA SHEET www.onsemi.com Zener Voltage Regulators 300 mW SOD 323 Surface Mount MM3ZxxxT1G Series, SZMM3ZxxxT1G Series This series of Zener diodes is packaged in a SOD 323 surface mount package that has a power dissipation of 300 mW. They are designed to provide voltage regulation protection and are especially attractive in situations where space is at a premium. They are well suited for applications such as cellular phones, hand held portables, and high density PC boards. Speci.

MM3Z20VT1G Features

* Standard Zener Breakdown Voltage Range

* 2.4 V to 75 V

* Steady State Power Rating of 300 mW

* Small Body Outline Dimensions: 0.067” x 0.049” (1.7 mm x 1.25 mm)

* Low Body Height: 0.035” (0.9 mm)

* Package Weight: 4.507 mg/Unit

* ESD Rating
