MM3Z56VT1G, MM3Z10VT1G - Zener Voltage Regulators

ON Semiconductor

📥 Download Datasheet

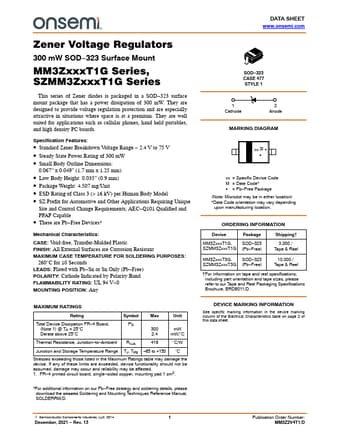

MM3Z56VT1G Datasheet Preview — This datasheet PDF includes multiple part numbers: MM3Z56VT1G, MM3Z10VT1G. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: MM3Z56VT1G, MM3Z10VT1G
Manufacturer: ON Semiconductor ↗
File Size: 172.88 KB
Datasheet: MM3Z10VT1G_ONSemiconductor.pdf
Description: Zener Voltage Regulators
Note: This datasheet PDF includes multiple part numbers: MM3Z56VT1G, MM3Z10VT1G.
Please refer to the document for exact specifications by model.

MM3Z56VT1G Product details

Features

Standard Zener Breakdown Voltage Range.
2.4 V to 75 V.
Steady State Power Rating of 300 mW.
Small Body Outline Dimensions: 0.067” x 0.049” (1.7 mm x 1.25 mm).
Low Body Height: 0.035” (0.9 mm).
Package Weight: 4.507 mg/Unit.
ESD Rating of Class 3 (> 16 kV) per Human Body Model.
SZ Prefix for Automotive and Other.
