MM3Z5V1ST1G Zener Voltage Regulators

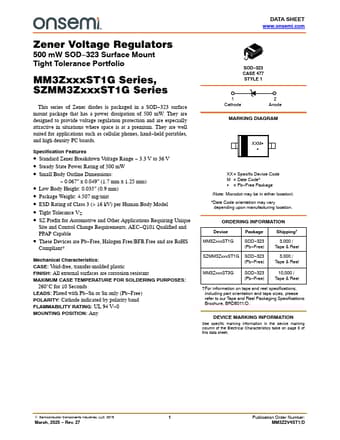

DATA SHEET www.onsemi.com Zener Voltage Regulators 500 mW SOD 323 Surface Mount Tight Tolerance Portfolio MM3ZxxxST1G Series, SZMM3ZxxxST1G Series This series of Zener diodes is packaged in a SOD 323 surface mount package that has a power dissipation of 500 mW. They are designed to provide voltage regulation protection and are especially attractive in situations where space is at a premium. They are well suited for applications such as cellular phones, hand held portable.

MM3Z5V1ST1G Features

* Standard Zener Breakdown Voltage Range

* 3.3 V to 36 V

* Steady State Power Rating of 500 mW

* Small Body Outline Dimensions:

* 0.067″ x 0.049″ (1.7 mm x 1.25 mm)

* Low Body Height: 0.035″ (0.9 mm)

* Package Weight: 4.507 mg/unit

* ES

MM3Z5V1ST1G Datasheet (190.76 KB)
