MM3Z75VT1, MM3Z2V4T1 - Zener Voltage Regulator Diode

ON Semiconductor

📥 Download Datasheet

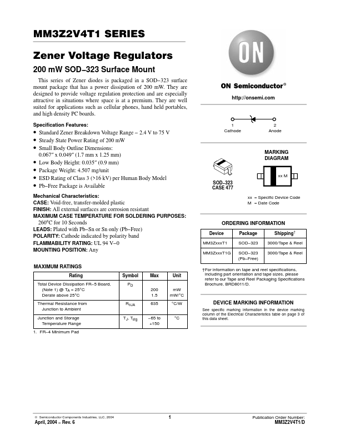

MM3Z75VT1 Datasheet Preview — This datasheet PDF includes multiple part numbers: MM3Z75VT1, MM3Z2V4T1. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MM3Z75VT1, MM3Z2V4T1
Manufacturer	ON Semiconductor ↗
File Size	60.56 KB
Description	Zener Voltage Regulator Diode
Datasheet	MM3Z2V4T1-ONSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: MM3Z75VT1, MM3Z2V4T1. Please refer to the document for exact specifications by model.

MM3Z75VT1 Product details

Features

Standard Zener Breakdown Voltage Range.
2.4 V to 75 V.
Steady State Power Rating of 200 mW.
Small Body Outline Dimensions: 0.067″ x 0.049″ (1.7 mm x 1.25 mm).
Low Body Height: 0.035″ (0.9 mm).
Package Weight: 4.507 mg/unit.
ESD Rating of Class 3 (>16 kV) per Human Body Model.
Pb.
Free Package is Available Mechanical Characteristics: CASE: Void-free, transfer-molded plastic FINISH: All external surfaces are corrosion.
