MMBTA06L - Driver Transistors

This page provides the datasheet information for the MMBTA06L, a member of the MMBTA05L Driver Transistors family.

Datasheet Summary

Features

  • S and NSV Prefix for Automotive and Other.

📥 Download Datasheet

Datasheet preview – MMBTA06L

Datasheet Details

Part number MMBTA06L
Manufacturer ON Semiconductor
File Size 201.25 KB
Description Driver Transistors
Datasheet download datasheet MMBTA06L Datasheet

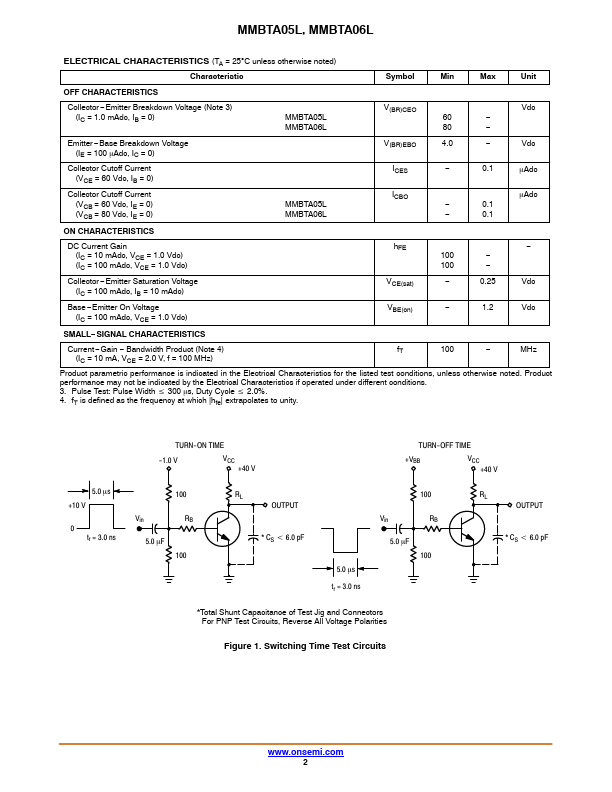

Additional preview pages of the MMBTA06L datasheet.

📁 Similar Datasheet

  • MMBTA06LT1 - Driver Transistors (Motorola)
  • MMBTA06 - Silicon NPN Transistor (NTE)
  • MMBTA06 - Driver Transistors (Kexin)
  • MMBTA06 - NPN General Purpose Transistor (GME)
  • MMBTA06 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • MMBTA06 - NPN Transistor (HOTTECH)
  • MMBTA06 - NPN Plastic Encapsulated Transistor (SeCoS)
  • MMBTA06 - NPN Transistor (Rectron)
  • MMBTA06 - NPN Silicon Epitaxial Planar Small Signal Transistor (SEMTECH)
  • MMBTA06 - NPN General Purpose Amplifier (Fairchild)
Other Datasheets by ON Semiconductor

Full PDF Text Transcription

Click to expand full text
DATA SHEET www.onsemi.com Driver Transistors MMBTA05L, MMBTA06L NPN Silicon Features  S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable  These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant MAXIMUM RATINGS Rating Symbol Value Unit Collector −Emitter Voltage VCEO Vdc MMBTA05L 60 MMBTA06L 80 Collector −Base Voltage VCBO Vdc MMBTA05L 60 MMBTA06L 80 Emitter −Base Voltage VEBO 4.0 Vdc Collector Current − Continuous IC 500 mAdc Electrostatic Discharge ESD HBM Class 3B MM Class C CDM Class IV Stresses exceeding those listed in the Maximum Ratings table may damage the device.
