MMBZ27VALT1G Zener Diode

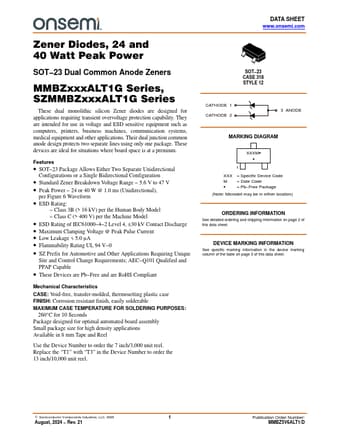

DATA SHEET www.onsemi.com Zener Diodes, 24 and 40 Watt Peak Power SOT 23 Dual Common Anode Zeners MMBZxxxALT1G Series, SZMMBZxxxALT1G Series These dual monolithic silicon Zener diodes are designed for applications requiring transient overvoltage protection capability. They are intended for use in voltage and ESD sensitive equipment such as computers, printers, business machines, communication systems, medical equipment and other applications. Their dual junction common anode design pro.

MMBZ27VALT1G Features

* SOT

* 23 Package Allows Either Two Separate Unidirectional Configurations or a Single Bidirectional Configuration

* Standard Zener Breakdown Voltage Range

* 5.6 V to 47 V

* Peak Power

* 24 or 40 W @ 1.0 ms (Unidirectional), per Figure 6 Waveform

MMBZ27VALT1G Datasheet (162.23 KB)
