MMSZ11T1G, MMSZ2V4T1G - Zener Voltage Regulator

MMSZ11T1G Description

DATA SHEET www.onsemi.com Zener Voltage Regulators 500 mW SOD *123 Surface Mount MMSZxxxT1G Series, SZMMSZxxxT1G Series Three complete series.

MMSZ11T1G Features

* 500 mW Rating on FR
* 4 or FR
* 5 Board
* Wide Zener Reverse Voltage Range
* 2.4 V to 56 V
* Package Designed for Optimal Automated Board Assembly

MMSZ11T1G Applications

* ESD Rating of Class 3 (> 16 kV) per Human Body Model
* AEC
* Q101 Qualified and PPAP Capable
* SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
* Pb
* Free Packages are Available
* Mechanical Charac

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MMSZ11T1G, MMSZ2V4T1G. Please refer to the document for exact specifications by model.

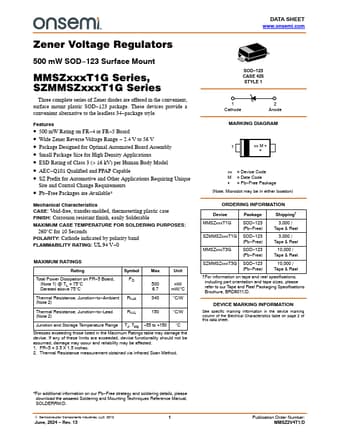

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MMSZ11T1G, MMSZ2V4T1G
Manufacturer
ON Semiconductor ↗
File Size
227.75 KB
Datasheet
MMSZ2V4T1G_ONSemiconductor.pdf
Description
Zener Voltage Regulator
Note
This datasheet PDF includes multiple part numbers: MMSZ11T1G, MMSZ2V4T1G.
Please refer to the document for exact specifications by model.
