MMSZ4680ET1G Zener Voltage Regulators

ON Semiconductor

Description

DATA SHEET www.onsemi.com Zener Voltage Regulators 500 mW SOD-123 Surface Mount MMSZ4xxxET1G Series, SZMMSZ4xxxET1G Series Three complete series of .

📥 Download Datasheet

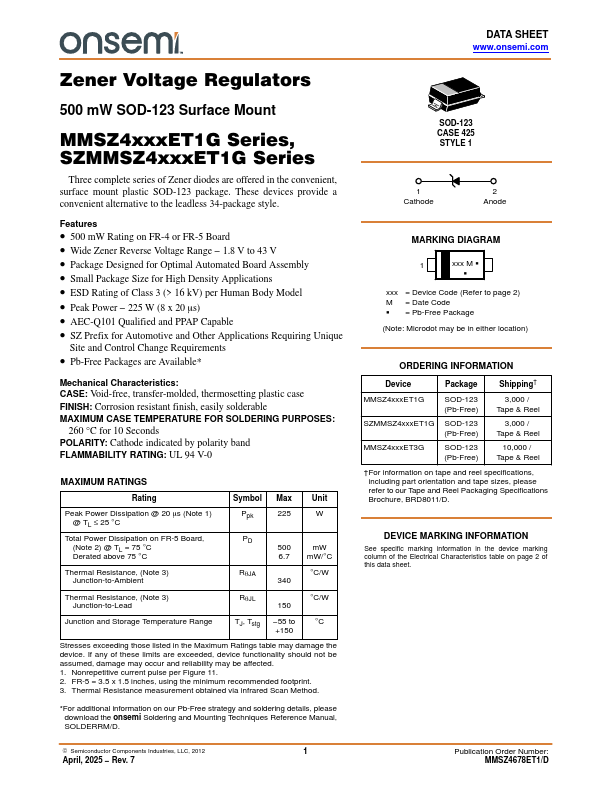

MMSZ4680ET1G Datasheet Preview — Preview of MMSZ4680ET1G PDF

Datasheet Specifications

Part number: MMSZ4680ET1G
Manufacturer: ON Semiconductor ↗
File Size: 160.53 KB
Datasheet: MMSZ4680ET1G-ONSemiconductor.pdf
Description: Zener Voltage Regulators

Features

* 500 mW Rating on FR-4 or FR-5 Board
* Wide Zener Reverse Voltage Range
* 1.8 V to 43 V
* Package Designed for Optimal Automated Board Assembly

Applications

* ESD Rating of Class 3 (> 16 kV) per Human Body Model
* Peak Power
* 225 W (8 x 20 ms)
* AEC-Q101 Qualified and PPAP Capable
* SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
* Pb-Free Packages are
