MOC3072M Datasheet - ON Semiconductor

6-Pin DIP Random-Phase Triac Driver Optocoupler

MOC3072M Features

* Excellent IFT Stability

* IR Emitting Diode Has Low Degradation

* 800 V Peak Blocking Voltage

* Safety and Regulatory Approvals

* UL1577, 4,170 VACRMS for 1 Minute

* DIN EN/IEC60747

* 5

* 5

* These are Pb

* Free Devices Appl

MOC3072M General Description

The MOC3071M, MOC3072M and MOC3073M devices consist of a GaAs infrared emitting diode optically coupled to a non *zero * crossing silicon bilateral AC switch (triac). These devices isolate low voltage logic from 240 VAC lines to provide random phase control of high current triacs or th.

MOC3072M Datasheet (362.24 KB)

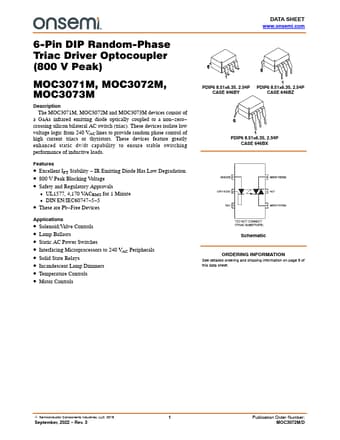

Preview of MOC3072M PDF

Datasheet Details

Part number:

MOC3072M

Manufacturer:

ON Semiconductor ↗

File Size:

362.24 KB

Description:

6-pin dip random-phase triac driver optocoupler.
