MUR820G, MUR810G Datasheet - ON Semiconductor

MUR820G Switch-mode Power Rectifier

MUR820G Features

* Ultrafast 25 and 50 Nanosecond Recovery Time

* 175C Operating Junction Temperature

* Epoxy Meets UL 94 V

* 0 @ 0.125 in

* Low Forward Voltage

* Low Leakage Current

* Reverse Voltage to 600 V

* ESD Ratings:  Machine Model = C (> 400 V)  Human Body Model = 3B (>

MUR810G-ONSemiconductor.pdf

This datasheet PDF includes multiple part numbers: MUR820G, MUR810G. Please refer to the document for exact specifications by model.

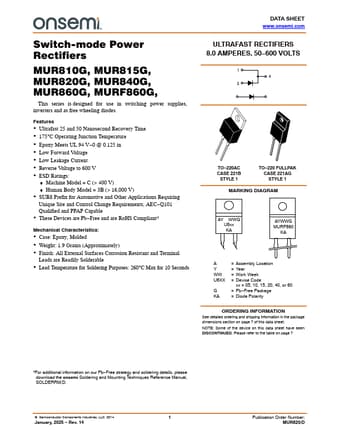

MUR820G Datasheet Preview Page 2 MUR820G Datasheet Preview Page 3

Datasheet Details

Part number:

MUR820G, MUR810G

Manufacturer:

ON Semiconductor ↗

File Size:

286.03 KB

Description:

Switch-mode power rectifier.

Note:

This datasheet PDF includes multiple part numbers: MUR820G, MUR810G.
Please refer to the document for exact specifications by model.
