MURA205NHP220SF Ultrafast Power Rectifier

NHP220SF, NRVHP220SF Surface Mount Ultrafast Power Rectifier Plastic SOD 123FL Package This SOD 123FL ultrafast rectifier provides fast switching performance with soft recovery in a compact thermally efficient package. Its compact footprint makes it ideally suited to portable and automotive applications where board space is at a premium. Its low profile makes it a good option for flat panel display and other applications with limited vertical clearance. The device offers low lea.

MURA205NHP220SF Features

* Fast Soft Switching for Reduced EMI and Higher Efficiency

* Low Profile

* Maximum Height of 1.0 mm

* Small Footprint

* Footprint Area of 5.94 mm2

* NRV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements

NHP220SF-ONSemiconductor.pdf

This datasheet PDF includes multiple part numbers: MURA205NHP220SF, NHP220SF. Please refer to the document for exact specifications by model.

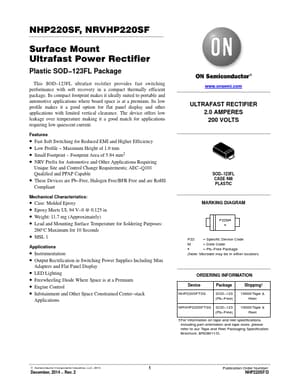

MURA205NHP220SF Datasheet Preview Page 2 MURA205NHP220SF Datasheet Preview Page 3

Datasheet Details

Part number:

MURA205NHP220SF, NHP220SF

Manufacturer:

ON Semiconductor ↗

File Size:

154.42 KB

Description:

Ultrafast power rectifier.

Note:

This datasheet PDF includes multiple part numbers: MURA205NHP220SF, NHP220SF.
Please refer to the document for exact specifications by model.
