MURS340T3G, MURS320T3G Datasheet - ON Semiconductor

MURS340T3G Surface Mount Ultrafast Power Rectifiers

DATA SHEET www.onsemi.com Surface Mount Ultrafast Power Rectifiers MURS320T3G, SURS8320T3G, SURS8320T3G-VF01, MURS340T3G, SURS8340T3G, MURS360T3G, SURS8360T3G, SURS8360T3G-VF01 This series employs the state of the art epitaxial construction with oxide passivation and metal overlay contact. Ideally suited for high voltage, high frequency rectification, or as free wheeling and protection diodes, in surface mount applications where compact size and weight are critical to th.

MURS340T3G Features

* Small Compact Surface Mountable Package with J

* Bend Leads

* Rectangular Package for Automated Handling

* High Temperature Glass Passivated Junction

* Low Forward Voltage Drop (0.71 to 1.05 Volts Max @ 3.0 A, TJ = 150°C)

* SURS8 Prefix for Automotive

MURS320T3G-ONSemiconductor.pdf

This datasheet PDF includes multiple part numbers: MURS340T3G, MURS320T3G. Please refer to the document for exact specifications by model.

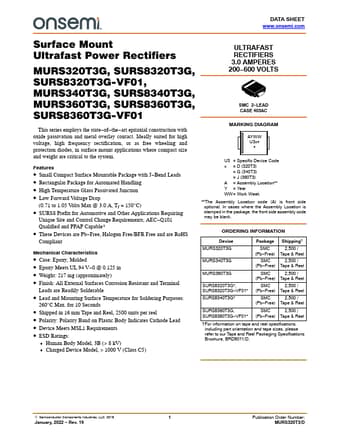

MURS340T3G Datasheet Preview Page 2 MURS340T3G Datasheet Preview Page 3

Datasheet Details

Part number:

MURS340T3G, MURS320T3G

Manufacturer:

ON Semiconductor ↗

File Size:

176.06 KB

Description:

Surface mount ultrafast power rectifiers.

Note:

This datasheet PDF includes multiple part numbers: MURS340T3G, MURS320T3G.
Please refer to the document for exact specifications by model.
