N24C04, N24C02, I2C CMOS Serial EEPROM

2/4/8/16-Kb I2C CMOS Serial EEPROM N24C02, N24C04, N24C08, N24C16 .
The N24C02/04/08/16 are EEPROM Serial 2/4/8/16. Kb I2C devices organized internally as 16/32/64 and 128 pages respectively of 16 bytes each.

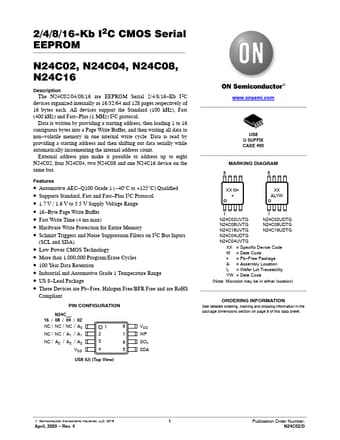

datasheet Preview Page 1 from Datasheet4u.com

N24C02-ONSemiconductor.pdf

N24C04 Datasheet Preview — This datasheet PDF includes multiple part numbers: N24C04, N24C02. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

N24C04, N24C02

Manufacturer:

ON Semiconductor ↗

File Size:

271.43 KB

Description:

I2C CMOS Serial EEPROM

Note:

This datasheet PDF includes multiple part numbers: N24C04, N24C02.
Please refer to the document for exact specifications by model.

Features

* Automotive AEC
* Q100 Grade 1 (
* 40°C to +125°C) Qualified
* Supports Standard, Fast and Fast
* Plus I2C Protocol
* 1.7 V / 1.6 V to 5.5 V Supply Voltage Range
* 16
* Byte Page Write Buffer
* Fast Write Time (4 ms max)
* Hard
