N34TS04

Digital Output Temperature Sensor

N34TS04 Features

* JEDEC TSE2004av Compliant Temperature Sensor

* DDR4 DIMM Compliant SPD EEPROM

* Temperature Range:

* 20°C to +125°C

* Supply Range: 1.7 V

* 5.5 V (SPD EEPROM) and 2.2 V

* 5.5 V (TS)

* I2C / SMBus Interface

* Schmitt Triggers an

N34TS04 General Description

The N34TS04 is a combination Temperature Sensor (TS) and 4

*Kb of Serial Presence Detect (SPD) EEPROM, which implements the JEDEC TSE2004av DDR4 specification and supports the Standard (100 kHz), Fast (400 kHz) and Fast Plus (1 MHz) I2C protocols. The TS measures temperature at least 10 times.

N34TS04 Datasheet (298.27 KB)

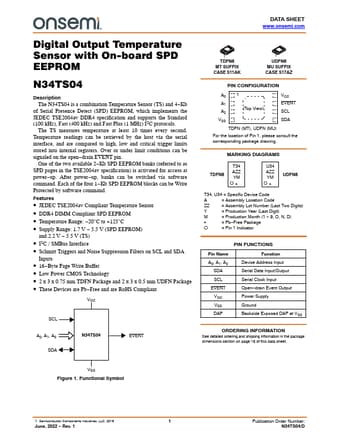

Preview of N34TS04 PDF

Datasheet Details

Part number:

N34TS04

Manufacturer:

ON Semiconductor ↗

File Size:

298.27 KB

Description:

Digital output temperature sensor.
