NCP152

Low Dropout Voltage Regulator

NCP152 Features

* Operating Input Voltage Range: 1.9 V to 5.25 V

* Two Independent Output Voltages: (for details please refer to the Ordering Information section)

* Very Low Dropout: 150 mV Typical at 150 mA

* Low IQ of typ. 50 mA per Channel

* High PSRR: 75 dB at 1 kHz

NCP152 General Description

Pin No. XDFN6 Pin Name Description 1 OUT1 Regulated output voltage of the first channel. A small 0.22 mF ceramic capacitor is needed from this pin to ground to assure stability. 2 OUT2 Regulated output voltage of the second channel. A small 0.22 mF ceramic capacitor is needed from this pin.

NCP152 Datasheet (1.40 MB)

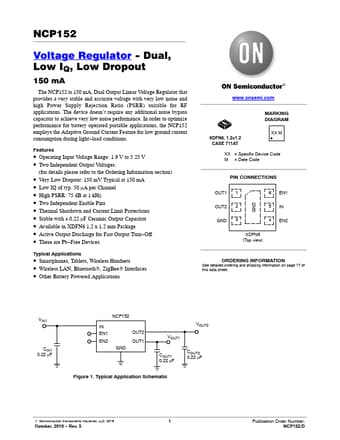

Preview of NCP152 PDF

Datasheet Details

Part number:

NCP152

Manufacturer:

ON Semiconductor ↗

File Size:

1.40 MB

Description:

Low dropout voltage regulator.
NCP152 Voltage Regulator - Dual, Low IQ, Low Dropout 150 mA The NCP152 is 150 mA, Dual Output Linear Voltage Regulator that provides a very stable an.
