NCP45560 Datasheet, Management, ON Semiconductor

✔ NCP45560 Features

✔ NCP45560 Application

PDF File Details

Manufacture Logo for ON Semiconductor
ON Semiconductor manufacturer logo

Part number:

NCP45560

Manufacturer:

ON Semiconductor ↗

File Size:

260.73kb

Download:

📄 Datasheet

Description:

Advanced load management. Pin Name 1, 13 VIN 2 EN 3 4 5 6 7 8*12 VCC GND SR PG BLEED VOUT Function Drain of MOSFET (0.5 V * 13.5 V), Pin 1 must be con

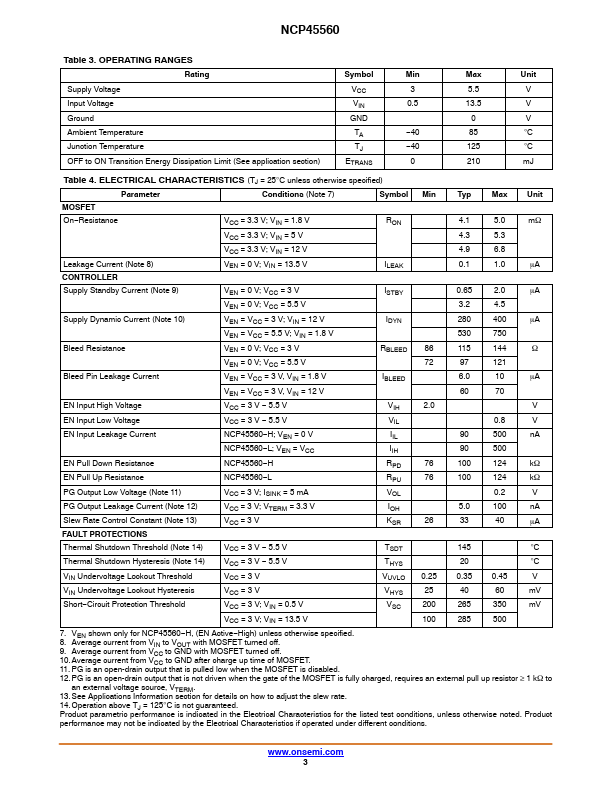

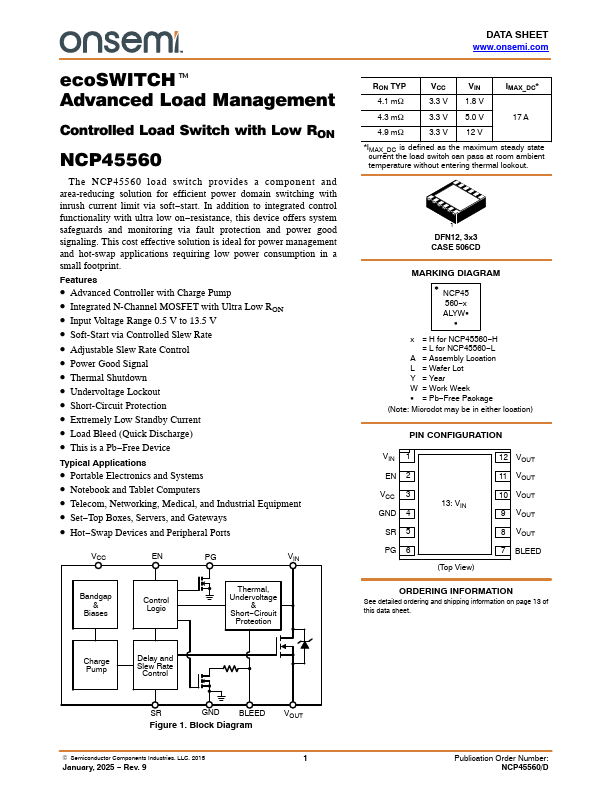

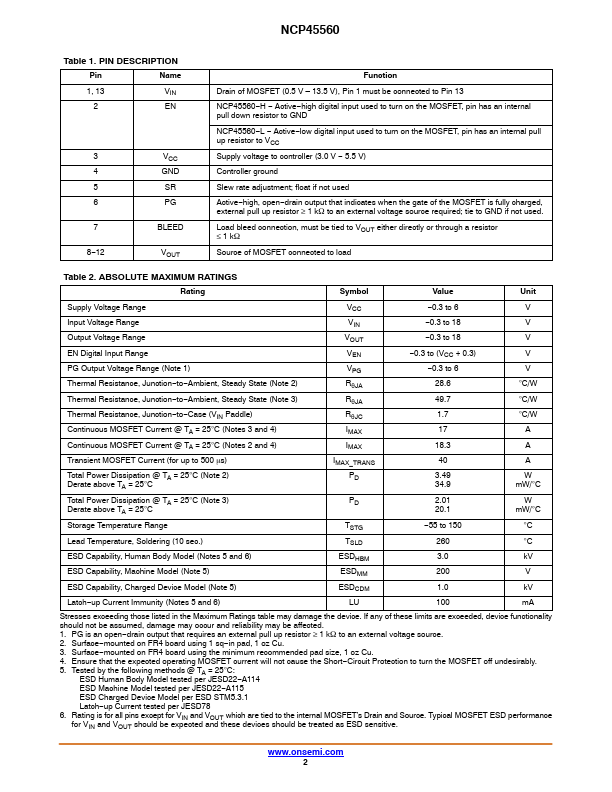

Datasheet Preview: NCP45560 📥 Download PDF (260.73kb)
