NCP5623 Triple Output I2C Controlled RGB LED Driver

NCP5623 Description

NCP5623 Triple Output I2C Controlled RGB LED Driver The NCP5623 mixed analog circuit is a triple output LED driver dedicated to the RGB illumination .

NCP5623 Features

* 2.7 to 5.5 V Input Voltage Range
* RGB Function Fully Supported
* Programmable Integrated Gradual Dimming
* 90 mA Total LED Current Capability
* Provides Three Independent LED Drives
* Support I2C Protocol
* This is a Pb
* Free Device T

NCP5623 Applications

* Multicolor Illuminations
* Portable Back Light
* Digital Cellular Phone Camera Photo Flash
* LCD and Key Board Simultaneous Drive +Vcc MCU I2C Port +Vbat 1 mF/6.3 V C1 GND 13 12 SDA 9 SCL 11 R1 10 62 k 6 GND 2 U1 NCP5623 Vbat Vdet SDA LED1 SCL IREF

📥 Download Datasheet

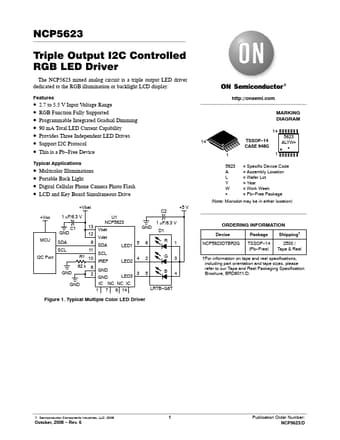

Preview of NCP5623 PDF
