NCP81146 Datasheet, Driver, ON Semiconductor

NCP81146 Features

  • Driver
  • Faster Rise and Fall Times
  • Adaptive Anti
  • Cross
  • Conduction Circuit
  • Integrated Bootstrap Diode
  • Pre OV function
  • ZCD Detect

PDF File Details

Part number:

NCP81146

Manufacturer:

ON Semiconductor ↗

File Size:

123.76kb

Download:

📄 Datasheet

Description:

Vr12.5 compatible synchronous buck mosfet driver. Pin No. Symbol 1 BST 2 PWM 3 EN 4 VCC 5 DRVL 6 GND 7 SW 8 DRVH 9 FLAG Description Floating bootstrap supply pin for high side

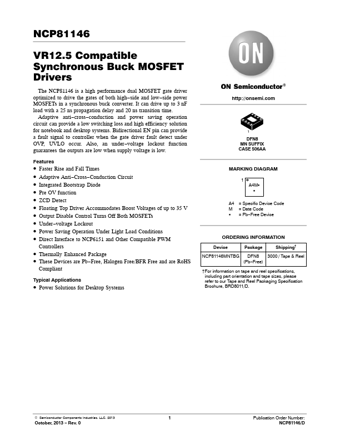

Datasheet Preview: NCP81146 📥 Download PDF (123.76kb)
Page 2 of NCP81146 Page 3 of NCP81146

NCP81146 Application

  • Applications
  • Power Solutions for Desktop Systems http://onsemi.com 1 DFN8 MN SUFFIX CASE 506AA MARKING DIAGRAM 1 A4MG G A4 = Specific De
