NCS20161, CMOS Operational Amplifier

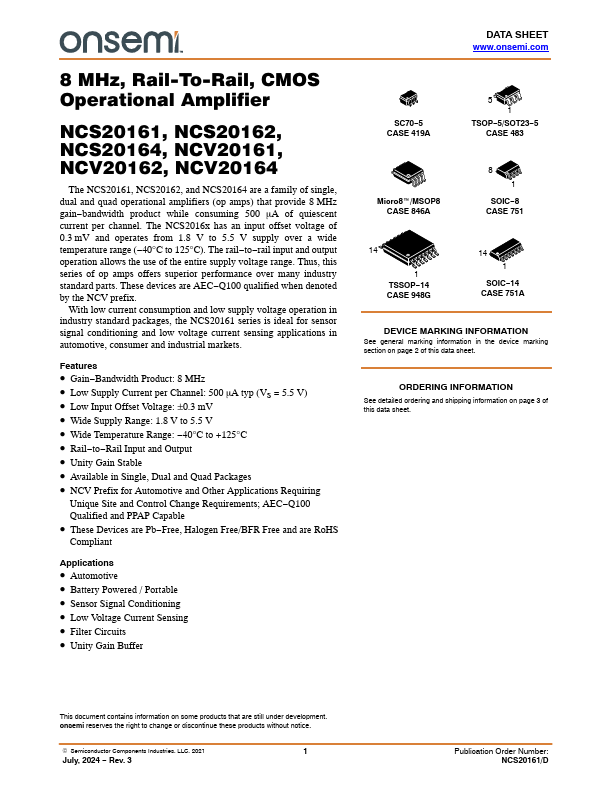

8 MHz, Rail-To-Rail, CMOS Operational Amplifier NCS20161, NCS20162, NCS20164, NCV20161, NCV20162, NCV20164 The NCS20161, NCS20162, and NCS20164 are a .

datasheet Preview Page 1 from Datasheet4u.com

NCS20161-ONSemiconductor.pdf

NCS20161 Datasheet Preview — Preview of NCS20161 PDF

Datasheet Details

Part number:

NCS20161

Manufacturer:

ON Semiconductor ↗

File Size:

344.05 KB

Description:

CMOS Operational Amplifier

Features

* Gain
* Bandwidth Product: 8 MHz
* Low Supply Current per Channel: 500 mA typ (VS = 5.5 V)
* Low Input Offset Voltage: ±0.3 mV
* Wide Supply Range: 1.8 V to 5.5 V
* Wide Temperature Range:
* 40°C to +125°C
* Rail
* to
* Rail I
