NCS2202 Low Voltage Comparators

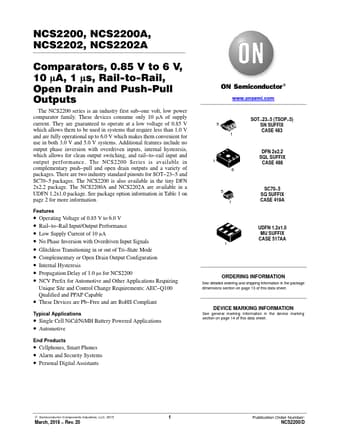

NCS2200, NCS2200A, NCS2202, NCS2202A Comparators, 0.85 V to 6 V, 10 mA, 1 ms, Rail-to-Rail, Open Drain and Push-Pull Outputs The NCS2200 series is an industry first sub one volt, low power comparator family. These devices consume only 10 mA of supply current. They are guaranteed to operate at a low voltage of 0.85 V which allows them to be used in systems that require less than 1.0 V and are fully operational up to 6.0 V which makes them convenient for use in both 3.0 V and 5.0 V system.

NCS2202 Features

* include no output phase inversion with overdriven inputs, internal hysteresis, which allows for clean output switching, and rail

* to

* rail input and output performance. The NCS2200 Series is available in complementary push

* pull and open drain outputs and a variety of packages.
