NCS37010

Self Test With Lockout Ground Fault-Circuit Interrupter

NCS37010 Features

* 6.0

* 12 V Operation (120

* 480 V AC Mains with the Appropriate Series Impedance)

* 40 to 85°C

* Very low power consumption: < 15 mW @ 6 V

* 16 Pin QFN or 20 Pin TSSOP Package

* Single Current Transformer (CT) Detection of Both Diffe

NCS37010 General Description

Pin # Name 0 Ground 1 MLD 2 CtresGN 3 Ctbias 4 Ctstim 5 CTresD 6 IDF 7 GFtst 8 GnEN 9 SCRtstEN 10 TE 11 PTT 12 LObar 13 LED[0] 14 LO 15 SCRdrv 16 Supply Pad Description QFN center slug Mains Level Detect (Zero Cross) Determines IV converter gain for detection thr.

NCS37010 Datasheet (297.24 KB)

Preview of NCS37010 PDF

Datasheet Details

Part number:

NCS37010

Manufacturer:

ON Semiconductor ↗

File Size:

297.24 KB

Description:

Self test with lockout ground fault-circuit interrupter.

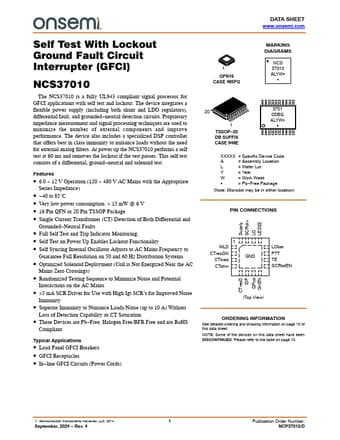

DATA SHEET www.onsemi.com Self Test With Lockout Ground Fault Circuit Interrupter (GFCI) NCS37010 The NCS37010 is a fully UL943 compliant signal proc.
