NOIV1SN5000A

VITA 5000 5.3 Megapixel 75 FPS Global Shutter CMOS Image Sensor

NOIV1SN5000A Features

* QSXGA: 2592 x 2048 Active Pixels

* 4.8 mm x 4.8 mm Pixel Size

* 1 inch Optical Format

* Monochrome (SN) or Color (SE)

* 75 Frames per Second (fps) at Full Resolution (LVDS)

* On-chip 10-bit Analog-to-Digital Converter (ADC)

* 8-bit or 10-bit

NOIV1SN5000A General Description

The VITA 5000 is a 1 inch Quad Super eXtended Graphics Array (QSXGA) CMOS image sensor with a pixel array of 2592 by 2048. The high sensitivity 4.8 mm x 4.8 mm pixels support pipelined and triggered global shutter readout modes and can also be operated in a low noise rolling shutter mode. In rolling.

NOIV1SN5000A Datasheet (855.12 KB)

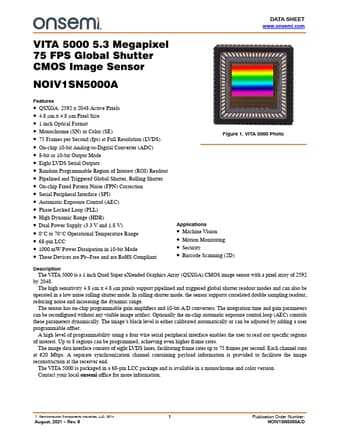

Preview of NOIV1SN5000A PDF

Datasheet Details

Part number:

NOIV1SN5000A

Manufacturer:

ON Semiconductor ↗

File Size:

855.12 KB

Description:

Vita 5000 5.3 megapixel 75 fps global shutter cmos image sensor.
