NOIV2SN2000A CMOS Image Sensor

The VITA 2000 is a 2/3 inch Widescreen Ultra eXtended Graphics Array (WUXGA) CMOS image sensor configurable in HD format (1920 x 1080) or 4:3 format (1600 X 1200). The high sensitivity 4.8 mm x 4.8 mm pixels support pipelined and triggered global shutter readout modes and can also be operated in a l.

NOIV2SN2000A Features

* WUXGA Resolution: 1920 (H) x 1200 (V) Format

* 4.8 mm x 4.8 mm Pixel Size

* 2/3 inch Optical Format

* Monochrome (SN) or Color (SE)

* 92 Frames per Second (fps) at Full Resolution (LVDS)

* 23 Frames per Second (fps) at Full Resolution (CMOS)

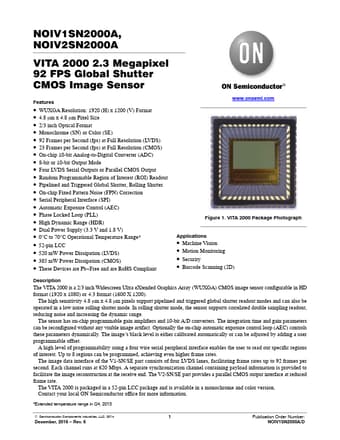

NOIV1SN2000A-ONSemiconductor.pdf

NOIV2SN2000A Datasheet Preview — This datasheet PDF includes multiple part numbers: NOIV2SN2000A, NOIV1SN2000A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

NOIV2SN2000A, NOIV1SN2000A

Manufacturer:

ON Semiconductor ↗

File Size:

841.66 KB

Description:

Cmos image sensor.

Note:

This datasheet PDF includes multiple part numbers: NOIV2SN2000A, NOIV1SN2000A.
Please refer to the document for exact specifications by model.
