NRVBB60H100CTT4G

Switch-mode Power Rectifier

ON Semiconductor

NRVBB60H100CTT4G Features

* Low Forward Voltage: 0.72 V @ 125°C

* Low Power Loss/High Efficiency

* High Surge Capacity

* 175°C Operating Junction Temperature

* 60 A Total (30 A Per Diode Leg)

* NRVB Prefix for Automotive and Other Applications Requiring Unique Site and Control

NRVBB60H100CTT4G Datasheet (243.32 KB)

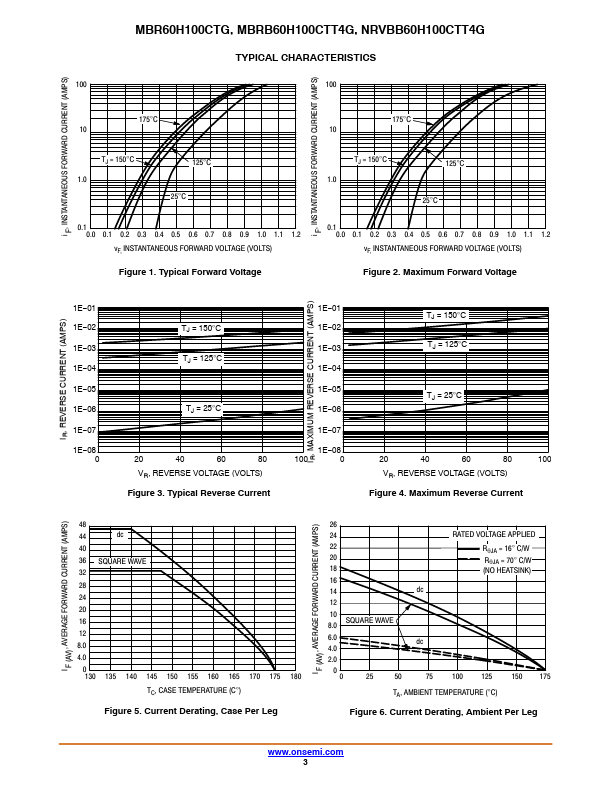

NRVBB60H100CTT4G Datasheet Preview — Preview of NRVBB60H100CTT4G PDF

Datasheet Details

Part number:

NRVBB60H100CTT4G

Manufacturer:

ON Semiconductor ↗

File Size:

243.32 KB

Description:

Switch-mode power rectifier.
