NRVTS2H60ESF Datasheet - ON Semiconductor

NRVTS2H60ESF, Trench-based Schottky Rectifier

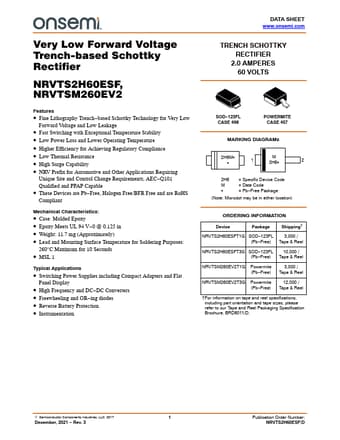

DATA SHEET www.onsemi.com Very Low Forward Voltage Trench-based Schottky Rectifier NRVTS2H60ESF, NRVTSM260EV2 TRENCH SCHOTTKY RECTIFIER 2.0 AMPERES .

datasheet Preview Page 1 from Datasheet4u.com

NRVTS2H60ESF-ONSemiconductor.pdf

NRVTS2H60ESF Datasheet Preview — Preview of NRVTS2H60ESF PDF

Datasheet Details

Part number:

NRVTS2H60ESF

Manufacturer:

ON Semiconductor ↗

File Size:

269.54 KB

Description:

Trench-based Schottky Rectifier

Features

* Fine Lithography Trench
* based Schottky Technology for Very Low Forward Voltage and Low Leakage
* Fast Switching with Exceptional Temperature Stability
* Low Power Loss and Lower Operating Temperature
* Higher Efficiency for Achieving Regulatory Compliance

Applications

* Requiring Unique Site and Control Change Requirements; AEC
* Q101 Qualified and PPAP Capable
* These Devices are Pb
* Free, Halogen Free/BFR Free and are RoHS Compliant Mechanical Characteristics:
* Case: Molded Epoxy
* Epoxy Meets UL 94 V
* 0 @ 0.125 in
